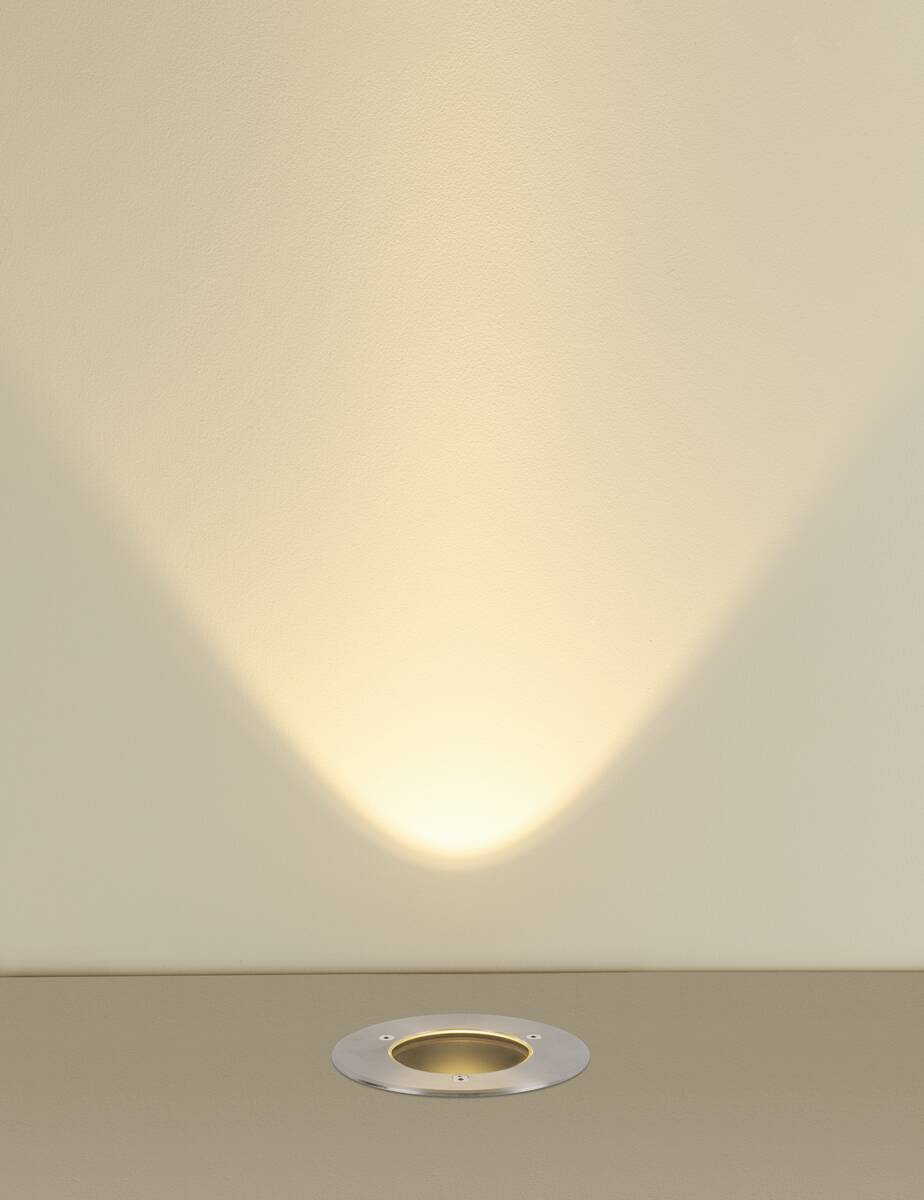

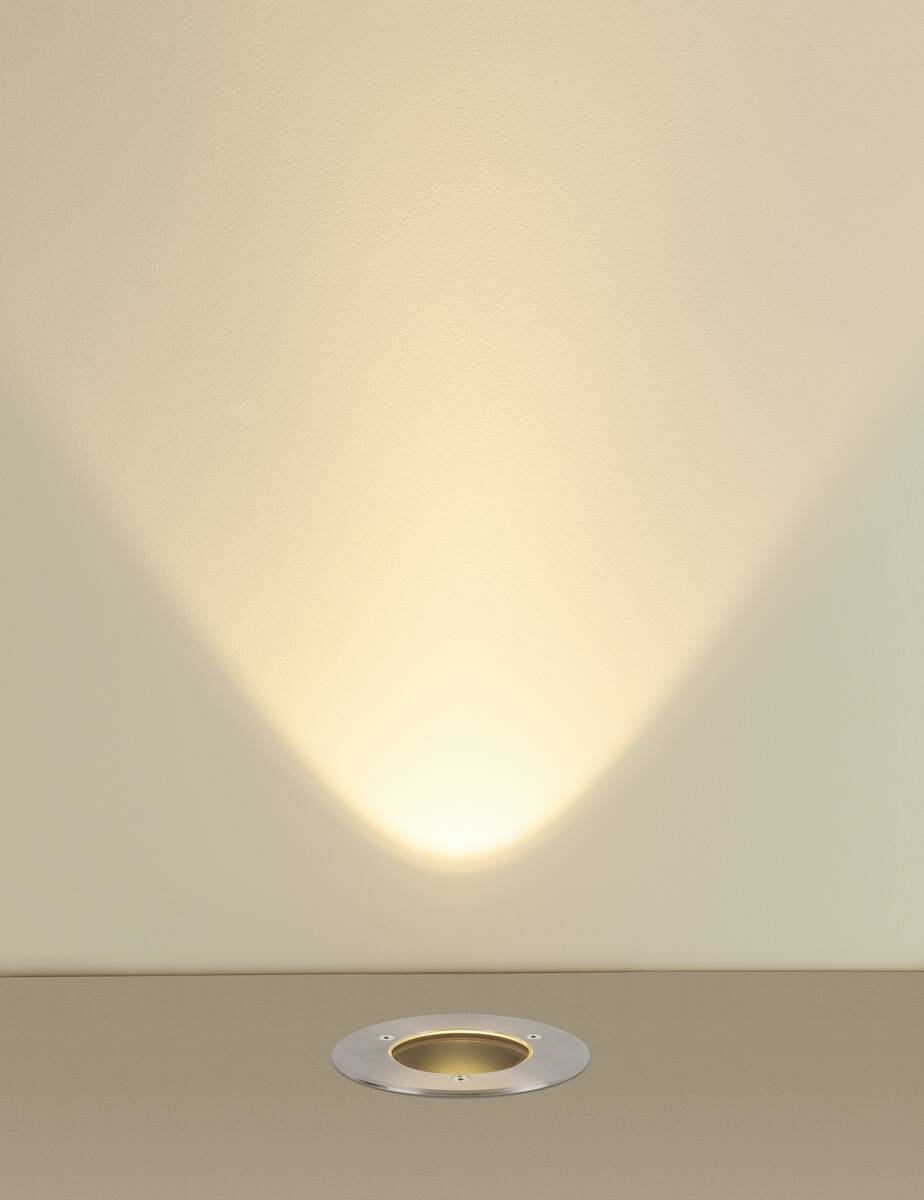

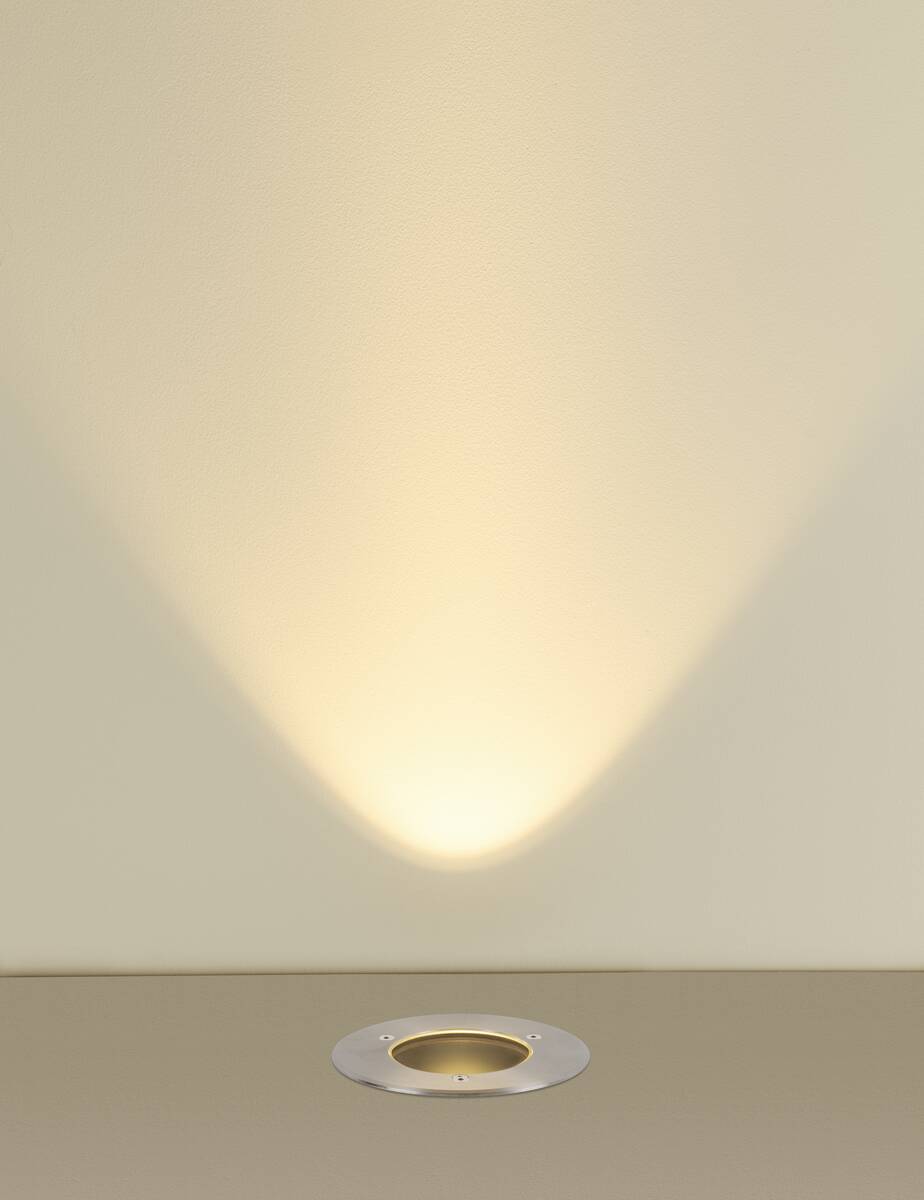

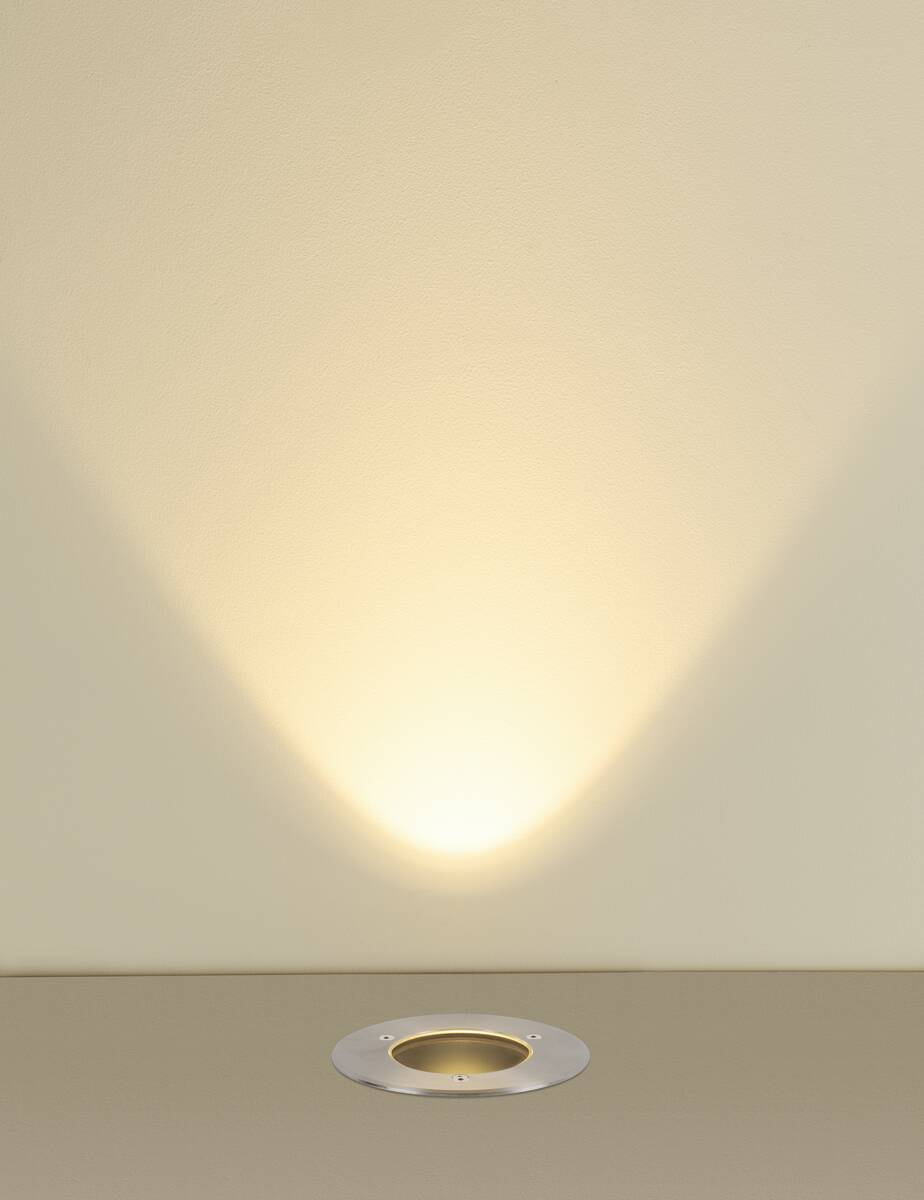

Experience the highest quality of light with unique ease of installation. In addition, the DALI-controllable DASAR® recessed floor lights with a lifespan of 50,000 hours (L80B50) set standards in terms of efficiency. The interchangeable reflectors with different beam angles of 15°, 30° and 50° offer a great deal of design freedom to effectively set the scene for facades. The reflectors can also be pivoted by 30°. And thanks to the separately available recessed fixing kit, the installation can be optimally adapted to your project planning.

Tehnilised andmed

Width	130 mm
IP Code	IP67
Dimming technology	Dimming DALI
Wattage	6 W
Lumen	450
Colour temperature	3000 K
CRI	80-89
Rated life time	Rated lifetime L70/B50 at 25 °C h
Built-in diameter	310 mm
Installation diameter	130 mm
Safety class	I
Lamp type	LED not exchangeable
CUT OUT DIAMETER IN CM	31
CUT OUT DEPTH IN CM	18
CUT OUT FORM IN CM	round
PRODUCT DIAMETER IN CM	13
PRODUCT WIDTH IN CM	13
PRODUCT LENGTH IN CM	14
LIFE TIME IN H	50000
BEAM ANGLE	24
EEK
RATED SECONDARY IN MA/V	300mA
RATED PRIMARY VOLTAGE	220-240V ~50/60 Hz
Built-in length	310 mm
Built-in height/depth	180 mm
Built-in width	310 mm
Length	140 mm
Height/depth	130 mm
Luminaire efficacy	64.00 lm/W
Suitable for lamp power	6 W
Impact resistance class	IK10
Material cover	Other
Colour housing	Anthracite
Material housing	Aluminium
Tehnilised failid	Mounting instruction Product data sheet Declaration warranty
Kategooriad	Floor stand, Indoor, LED, Recessed
