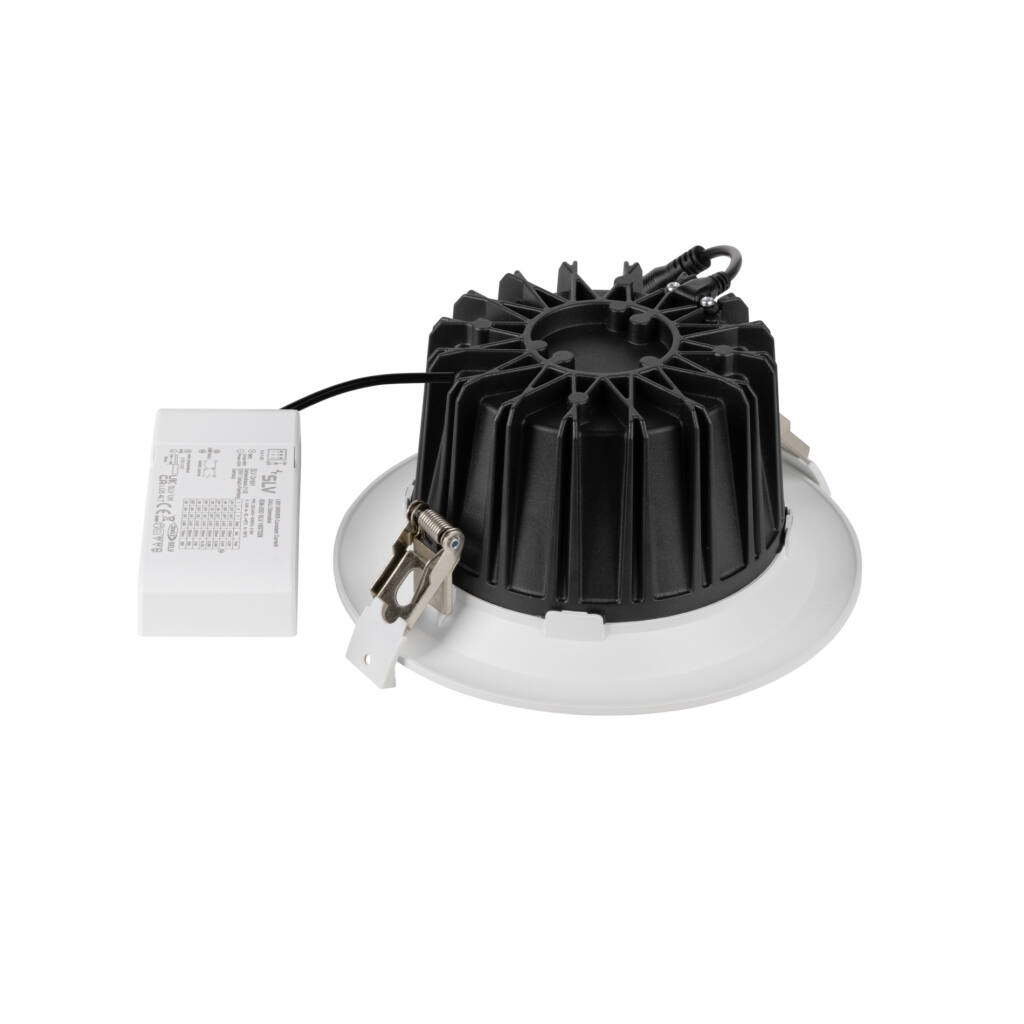

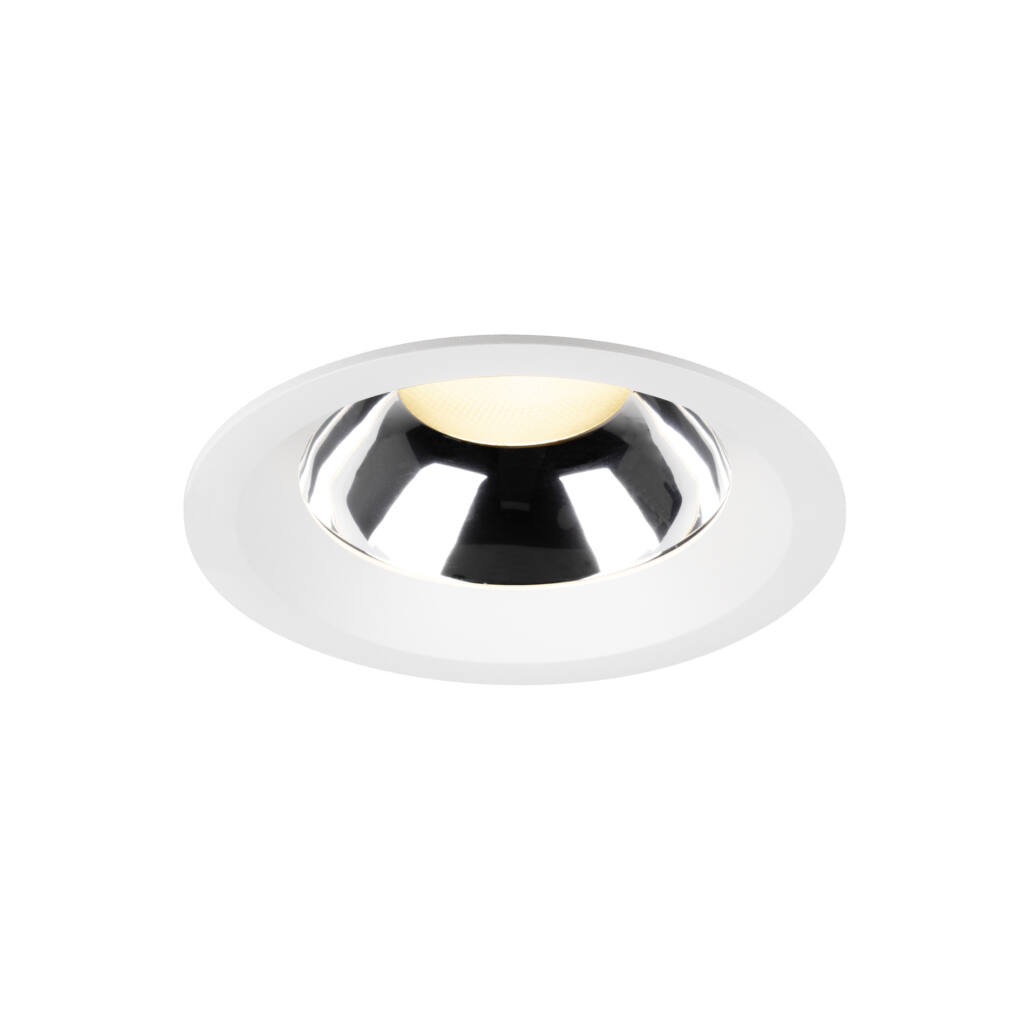

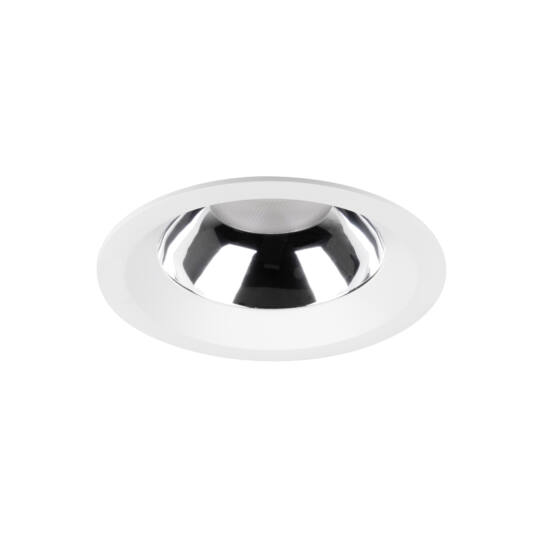

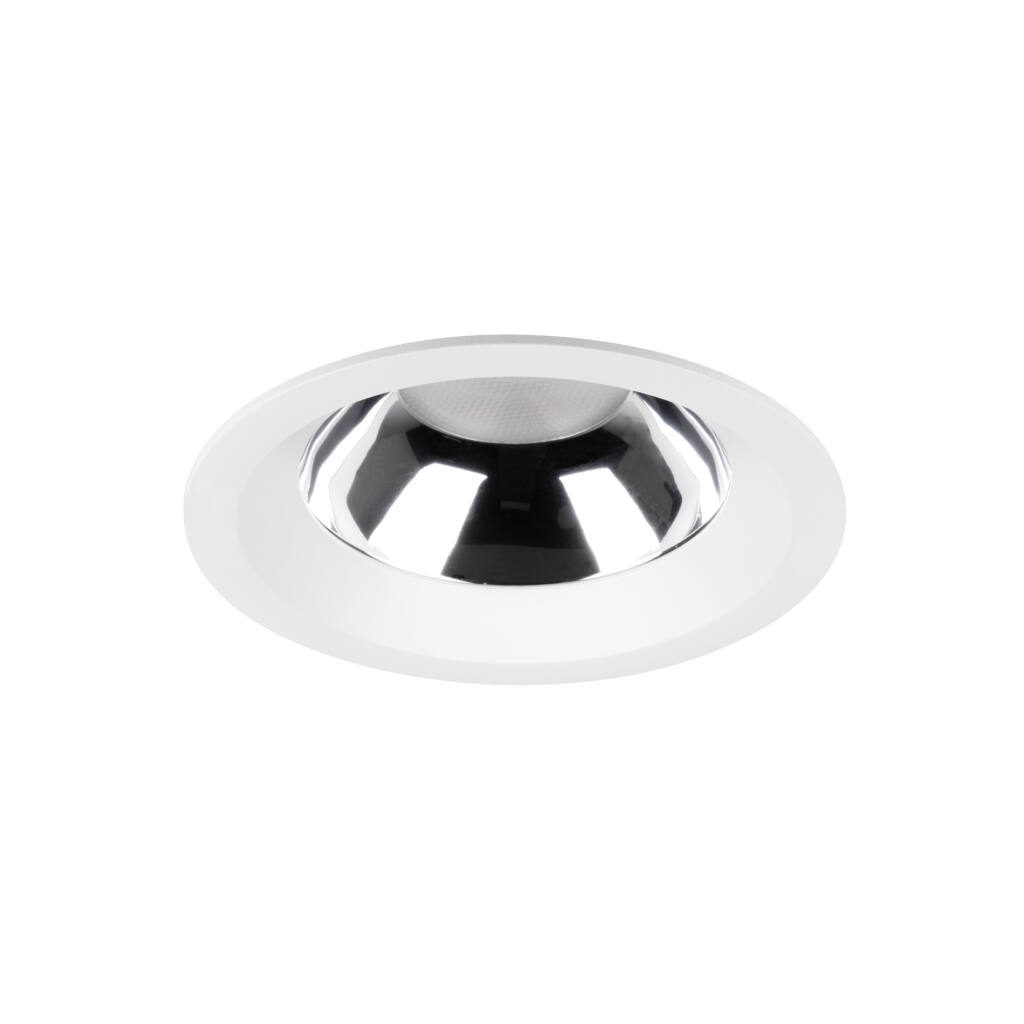

Discover our technical product range: SLVtec. With state-of-the-art LED technology, we offer energy-efficient and functional lighting solutions for indoor and outdoor use. From wet room lights to high-bay spotlights – our high-quality products impress with functionality and a fair price-performance ratio. These include the DOWNLIGHT C recessed luminaires, which are ideal for general lighting in commercial environments. They are available in two different cut-outs (150 mm and 200 mm) and offer a colour temperature of 3000K or 4000K. You can also choose from an on/off version with switchable system output and a DALI-controllable version. With their eligible energy efficiency and a lumen output of up to 3,100 lm, you can experience sustainable lighting in commercial spaces.

Tehnilised andmed

Width	176 mm
IP Code	IP54
Dimming technology	Dimming DALI
Wattage	20 W
Lumen	2250
Colour temperature	3000 K
CRI	90-100
Installation diameter	176 mm
Safety class	II
Lamp type	LED not exchangeable

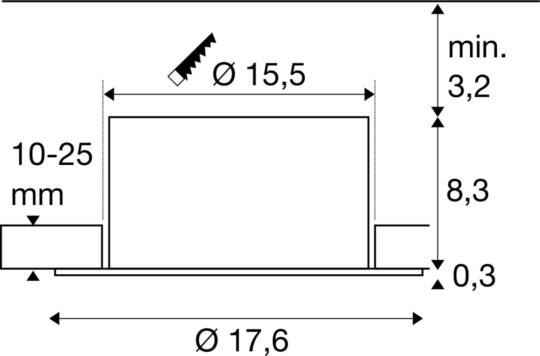

CUT OUT DIAMETER IN CM	15.5
CUT OUT DEPTH IN CM	9
CUT OUT FORM IN CM	round
PRODUCT DIAMETER IN CM	17.6
PRODUCT WIDTH IN CM	17.6
PRODUCT LENGTH IN CM	17.6
LIFE TIME IN H	70000
UGR	22
BEAM ANGLE	55
EEK
RATED SECONDARY IN MA/V	500mA
RATED PRIMARY VOLTAGE	220-240V ~50/60 Hz
Built-in length	155
Built-in height/depth	90
Built-in width	155
Length	176 mm
Height/depth	86 mm
Suitable for lamp power	20 W
Impact resistance class	IK02
Light outlet	Direct
Material cover	Other
Colour housing	White
Surface protection	Lacquered
Material housing	Aluminium
Tehnilised failid	Mounting instruction Product data sheet Declaration warranty
Kategooriad	Ceiling lights, Indoor, Recessed
