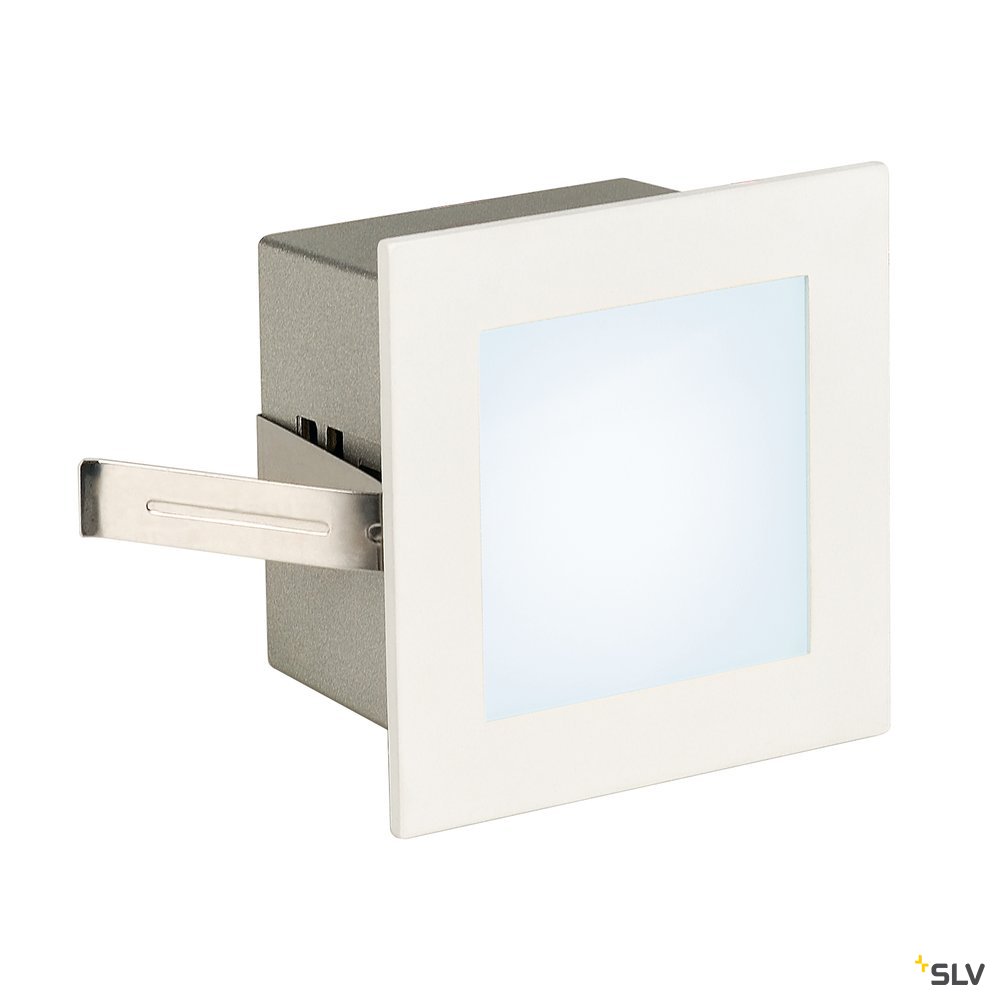

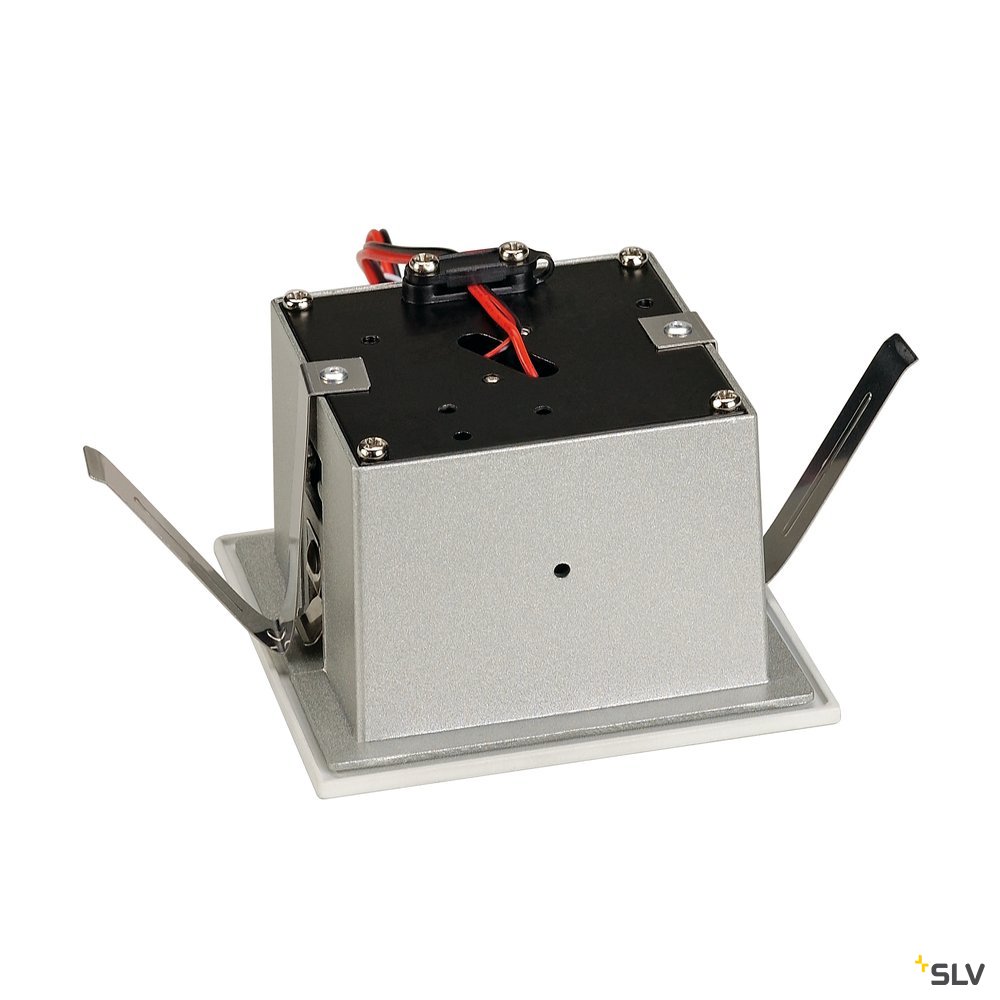

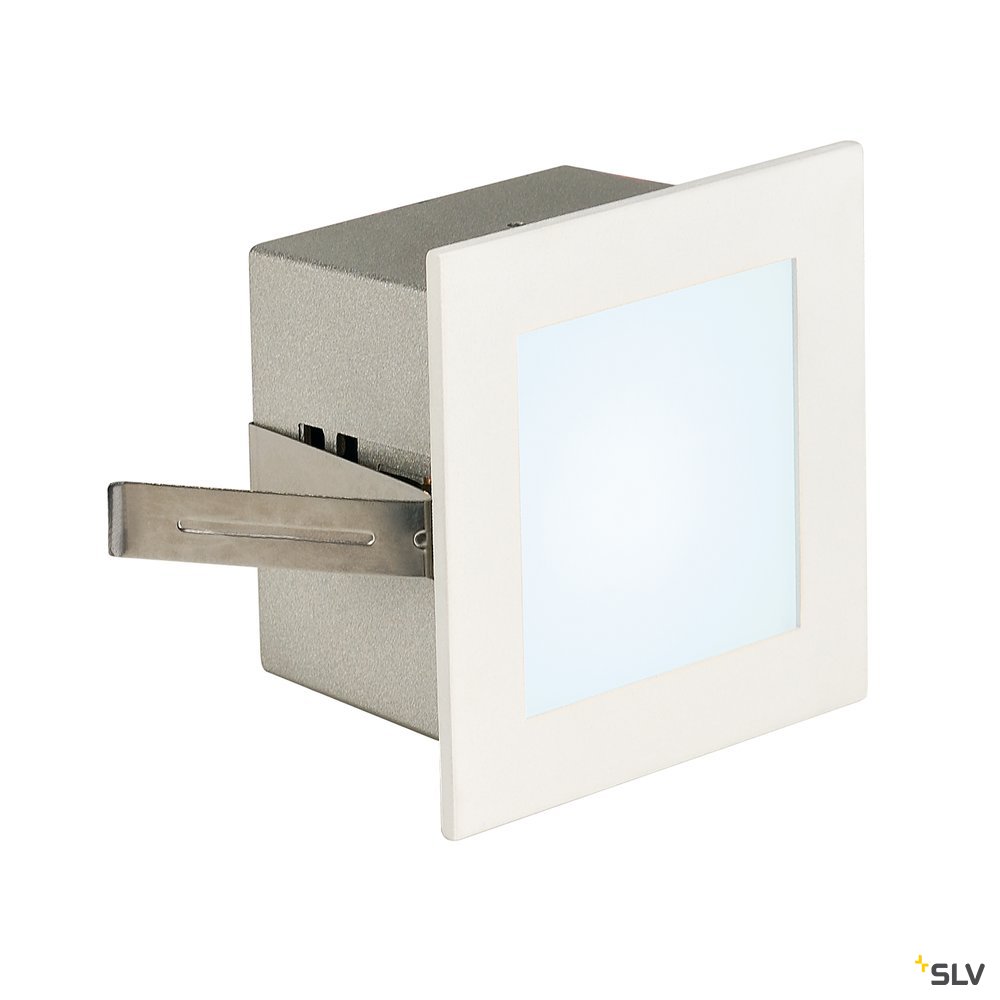

With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation with minimum space requirements. The LED version is equipped with a high-quality diode and available in either pure white or warm white light colour. To operate, the FRAME BASIC needs a suitable constant current driver rated at 350mA. The optional accessory includes a connector strip for simplified wiring in addition to the mounting box and flush-mount frame. This luminaire contains built-in LED lamps.

Tehnilised andmed

Width	90 mm
IP Code	IP20
Type of grid	None
Wattage	1 W
Lumen	36 lm
Colour temperature	4000 K
CRI	90-100
Safety class	III
Lamp type	LED not exchangeable
Hämardamine	No
Colour housing	White
Material housing	Aluminium
Light outlet	Direct
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Built-in height/depth	66 mm
Luminaire efficacy	36 lm/W
Height/depth	90 mm
Length	60 mm
Built-in length	75 mm
Built-in width	75 mm
Suitable for lamp power	1 W
Material cover	Glass opal

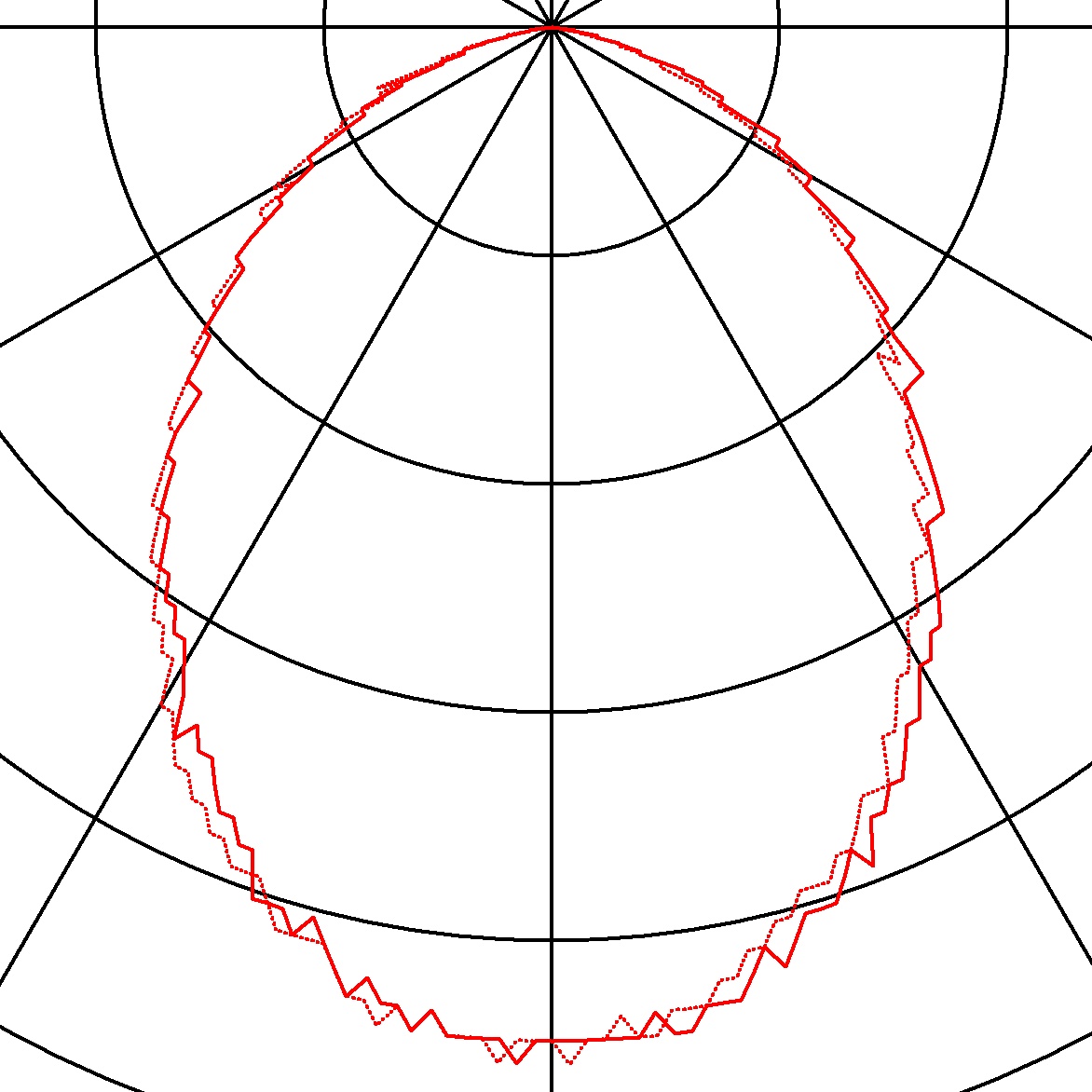

Tehnilised failid	Light Distribution Curve Mounting instruction
Kategooriad
Sildid	12 voltage Downlight, Wall recessed luminaire
