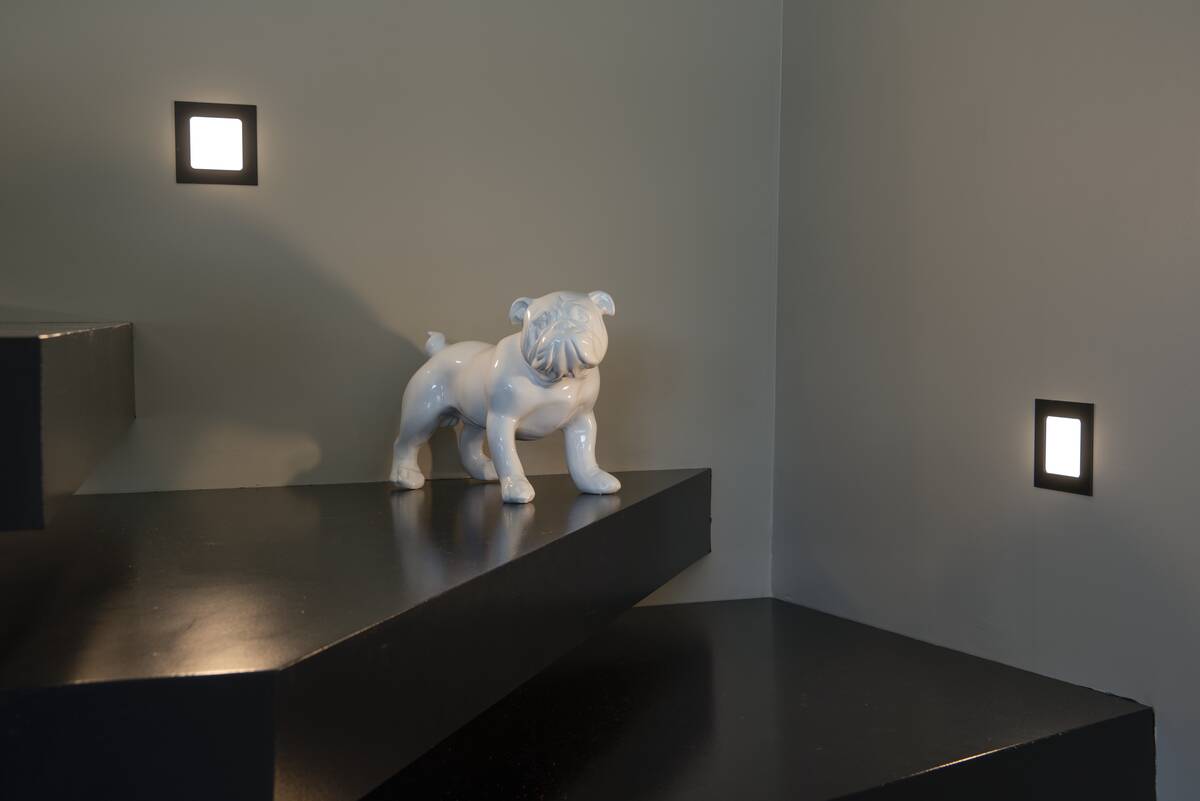

With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation with minimum space requirements. The LED set is equipped with warm white Premium LED light diodes. This luminaire contains built-in LED lamps.

Tehnilised andmed

Width	90 mm
IP Code	IP20
Wattage	8 W
Lumen	600 lm
Colour temperature	3000 K
CRI	80-89
Rated life time	Rated life time L70/B50 at 25 °C h
Safety class	II
Lamp type	LED not exchangeable
Hämardamine	No
CUT OUT DEPTH IN CM	5
CUT OUT WIDTH IN CM	7.5
CUT OUT LENGTH IN CM	7.5
CUT OUT FORM IN CM	square
PRODUCT WIDTH IN CM	9
PRODUCT LENGTH IN CM	9
LIFE TIME IN H	50000
BEAM ANGLE	90
EEK	contains Lightsources of EEC E
RATED SECONDARY IN MA/V	350mA
RATED PRIMARY VOLTAGE	220-240V ~50/60Hz
Luminaire efficacy	72.29 lm/W
Built-in height/depth	50 mm
Built-in width	75 mm
Suitable for lamp power	8 W
Material cover	Plastic matt/satinized
Colour housing	Black
Surface protection	Lacquered
Material housing	Aluminium
Tehnilised failid	CE-Declaration Light Distribution Curve Mounting instruction
Kategooriad	Indoor, LED, Wall and ceiling
