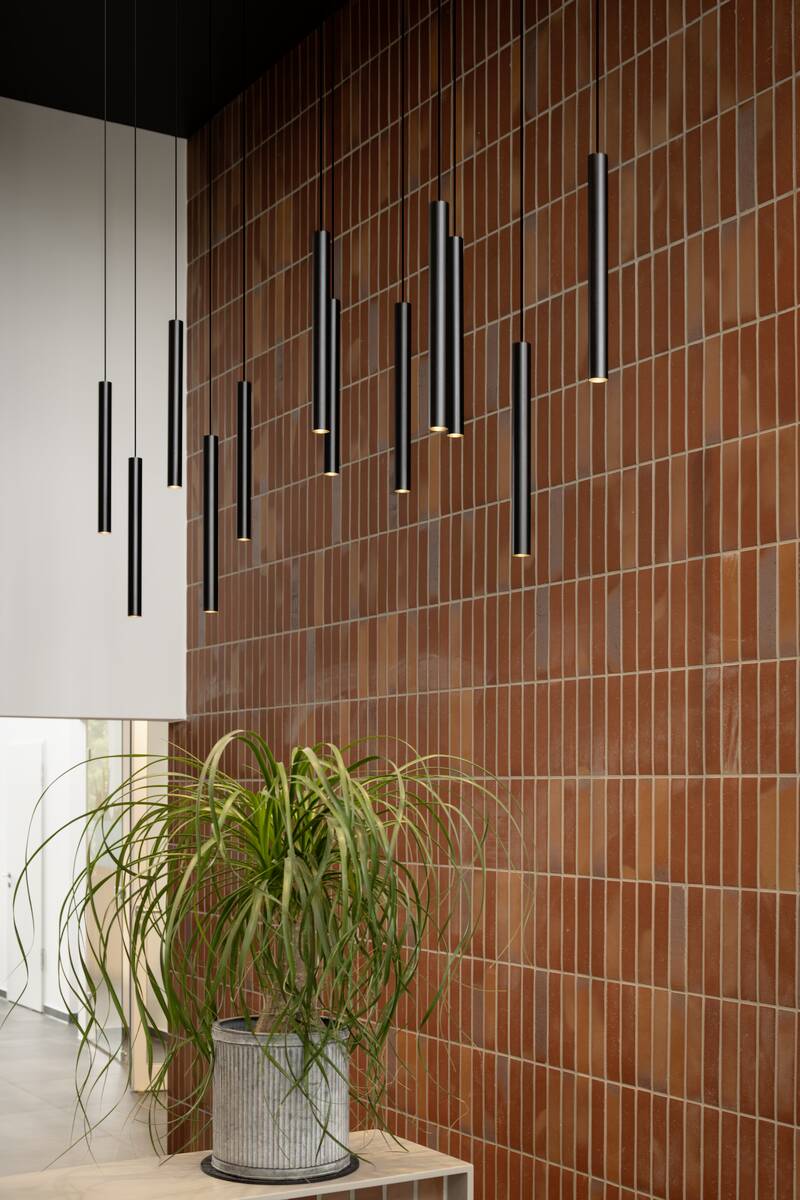

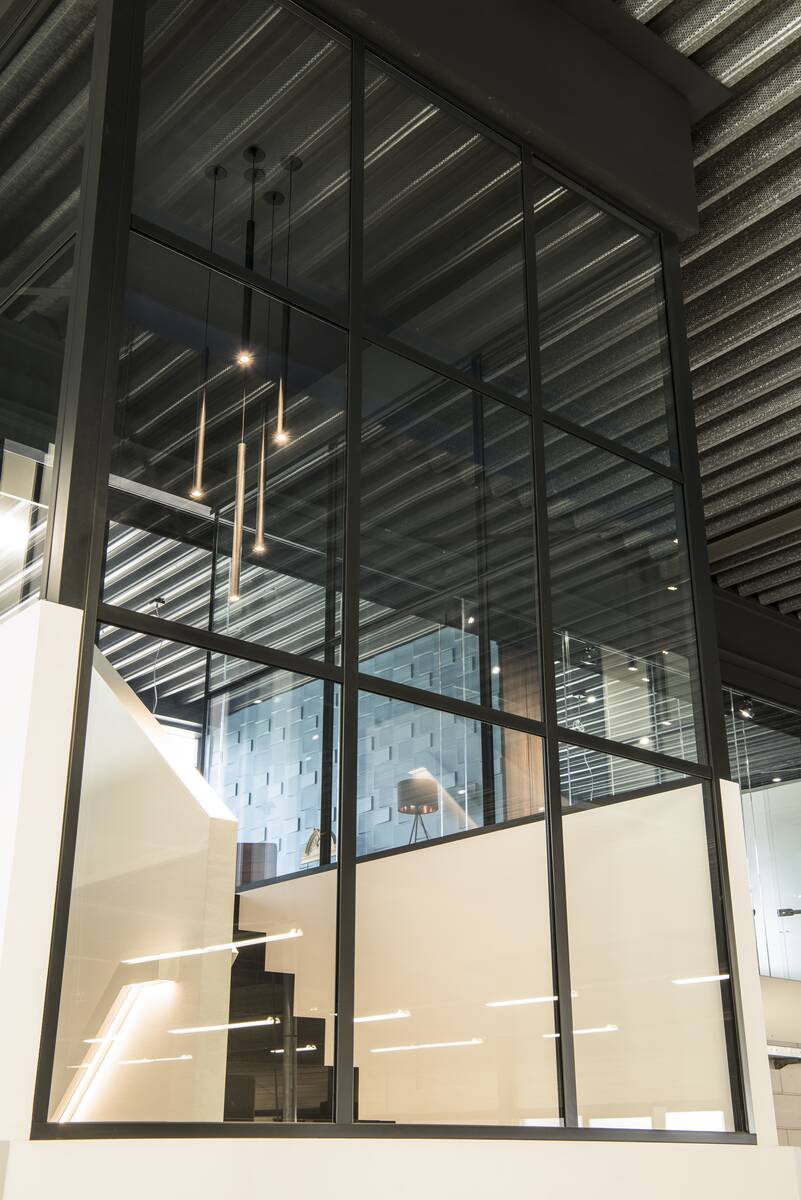

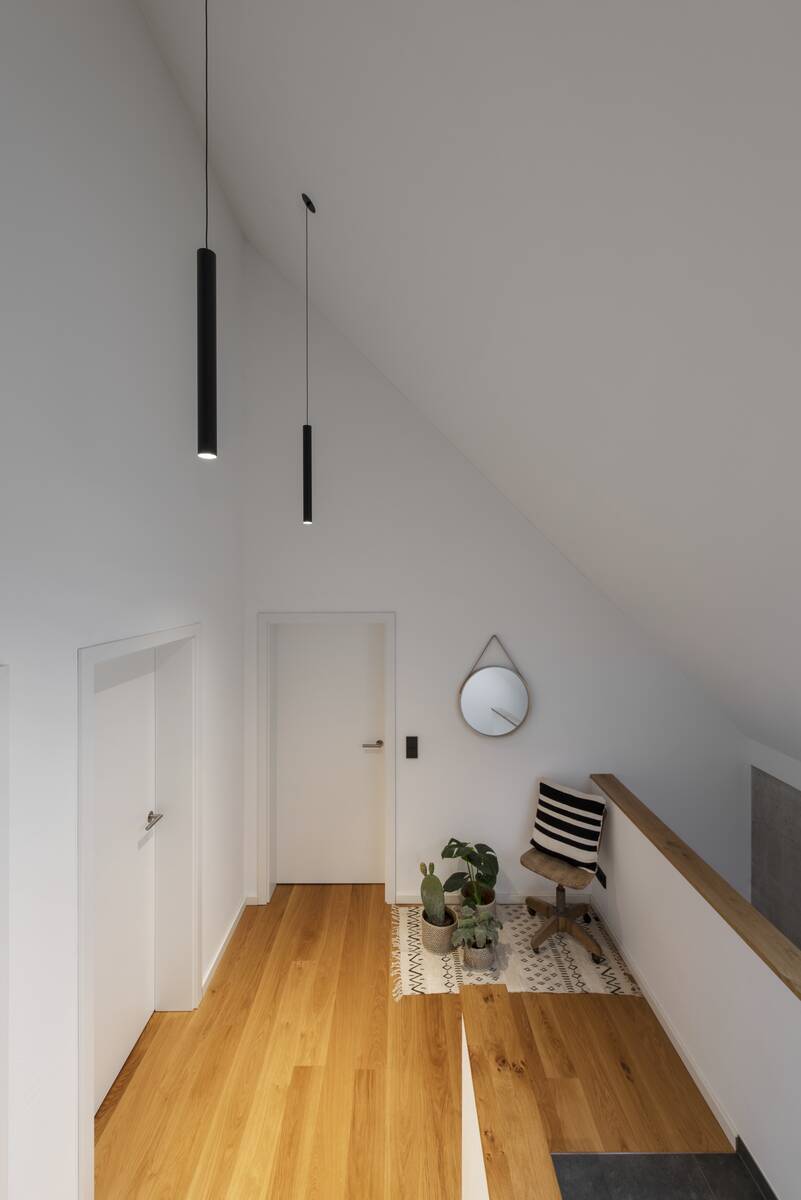

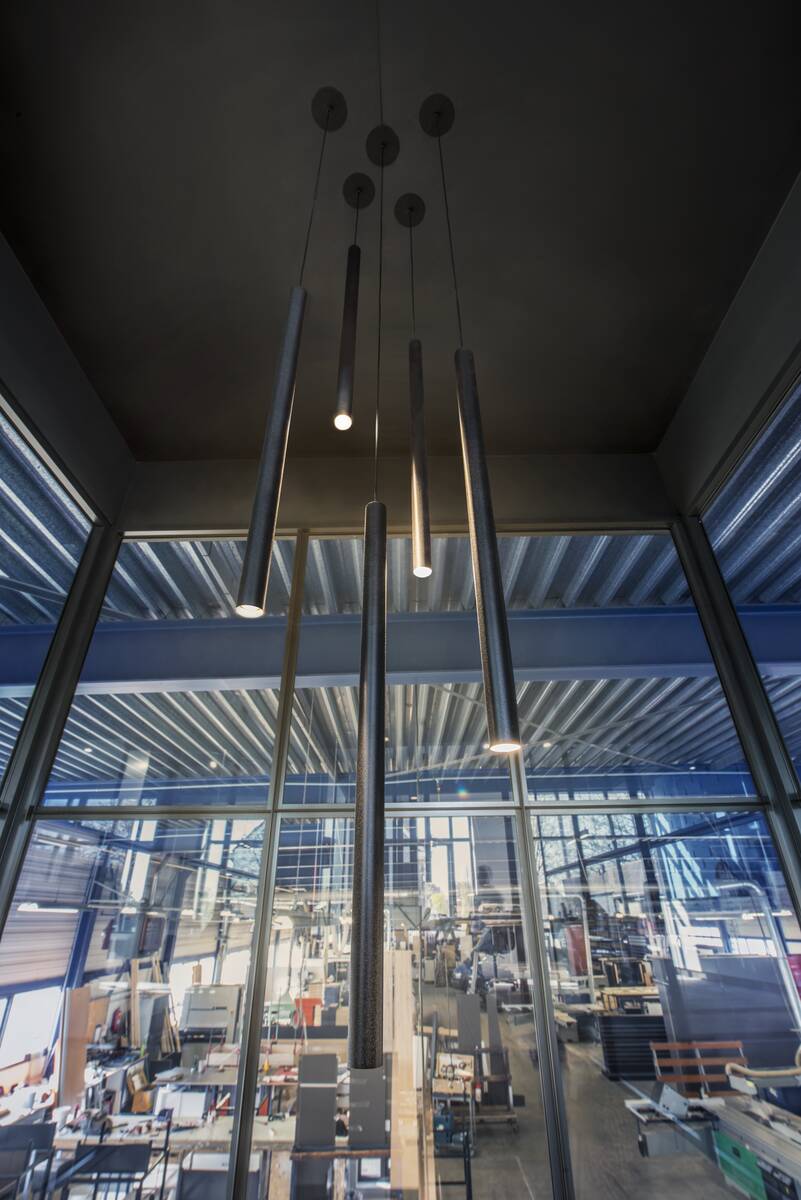

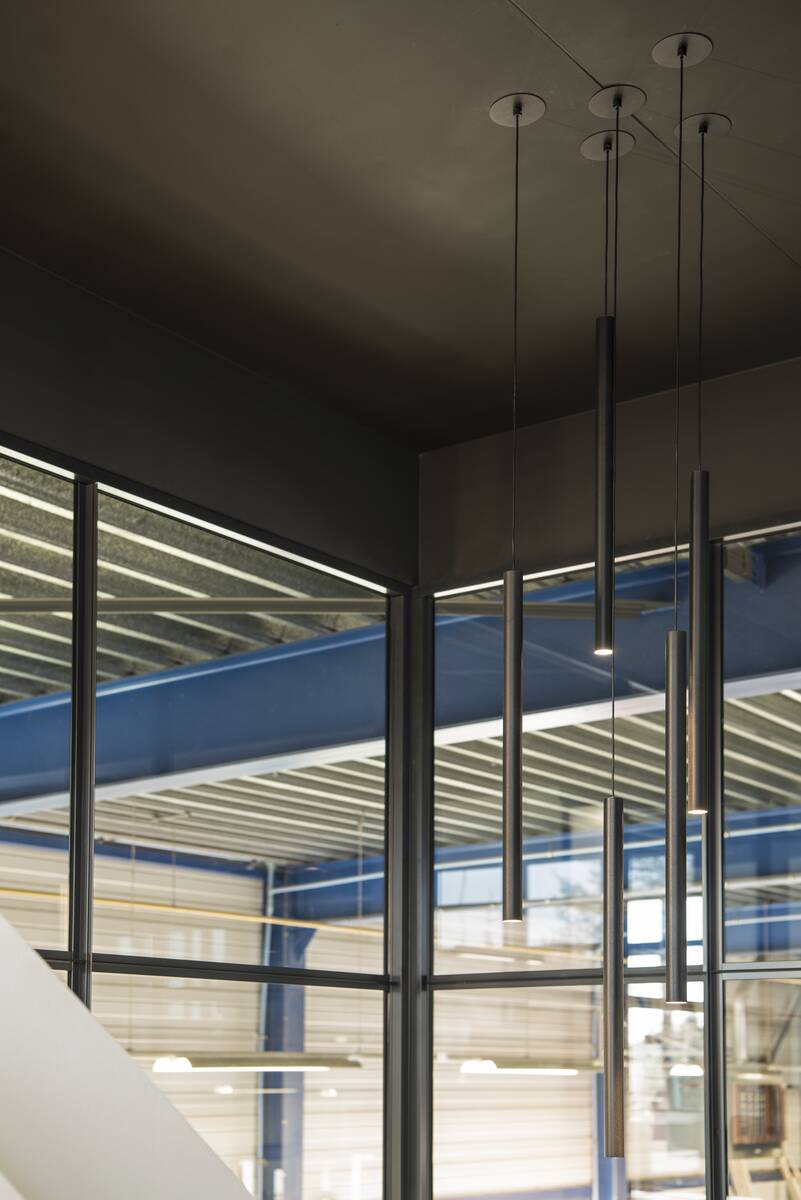

With the HELIA 30 you have a recessed pendant with a puristic and clear design. This luminaire is available in black, white and brushed copper. With integrated 7.5 W warm-white premium LED. The luminaire is supplied with a 1.5 m connection lead / suspension. A separate 500mA constant current driver is required for operation.

Tehnilised andmed

Width	30 mm
IP Code	IP20
Wattage	7 W
Lumen	500
Colour temperature	3000 K
CRI	90-100
Rated life time	Rated lifetime L70/B50 at 25 °C h
Diameter	30 mm
Safety class	III
Lamp type	LED not exchangeable
Hämardamine	No
CUT OUT DIAMETER IN CM	6.8
CUT OUT DEPTH IN CM	3
CUT OUT FORM IN CM	round
PRODUCT DIAMETER IN CM	3
PRODUCT WIDTH IN CM	3
PRODUCT LENGTH IN CM	60
BEAM ANGLE	40
EEK
RATED SECONDARY IN MA/V	500mA
RATED PRIMARY VOLTAGE	500mA
Pendant length	1500 mm
Luminaire efficacy	66.67
Suitable for lamp power	7 W
Light outlet	Direct
Colour housing	Black
Material housing	Aluminium
Tehnilised failid	CE-Declaration Light Distribution Curve Mounting instruction
Kategooriad	Indoor, LED, Pendant lights

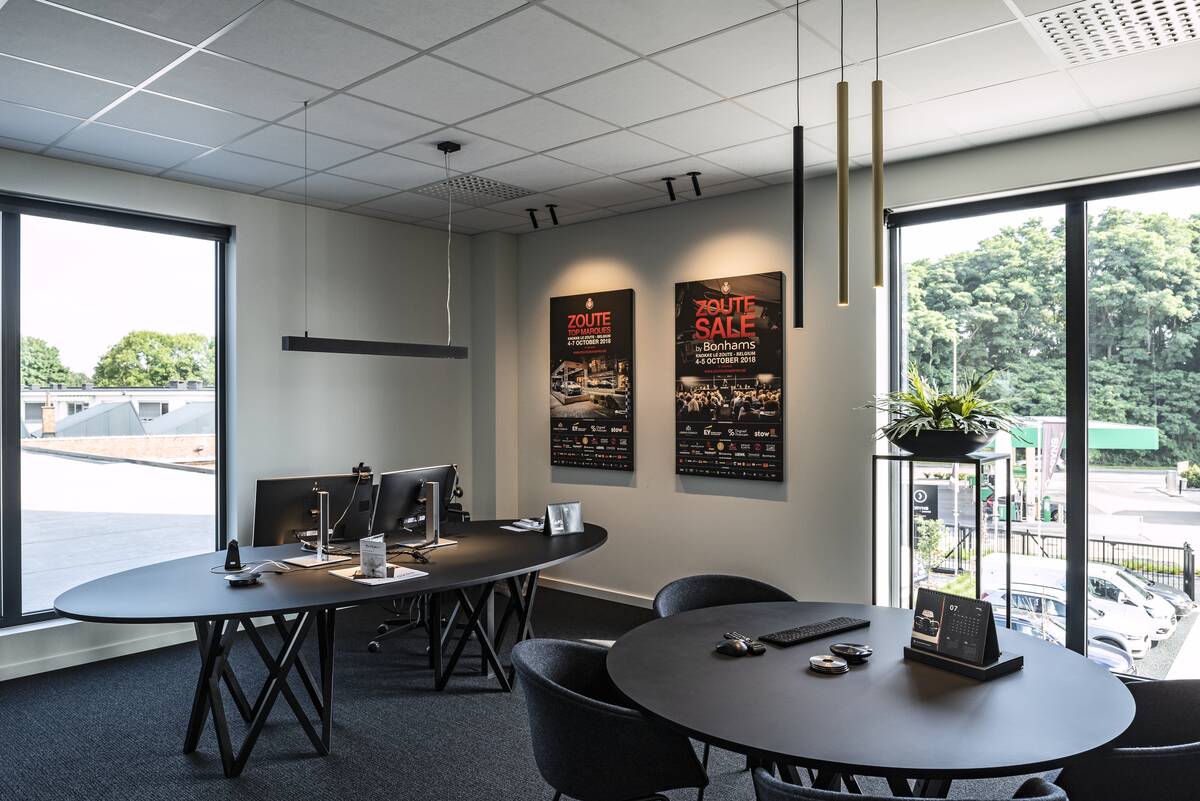

Sildid	Living room pendant, Office lighting
