NUMINOS® ZOOM M DALI, black 3-phase spot, 20W 3000K 15-60°

normal
Dimensioned drawing
Product picture back view
Product picture bottom view
Product picture detailed view
Product picture front view
  • normal
  • Dimensioned drawing
  • Product picture back view
  • Product picture bottom view
  • Product picture detailed view
  • Product picture front view

The NUMINOS light system from SLV combines technology, design and functionality like no other. With a variety of downlights and spotlights, you provide a thousand lighting design options. Like with the NUMINOS® DALI ZOOM M 3-phase system light LED, which impresses with its high-quality workmanship and light. With the spotlight, you can opt for spot lighting or high-quality illumination of larger areas. Installation is then done in no time at all. When to choose NUMINOS from SLV – modular diversity awaits you.

Tehnilised andmed

Width 165 mm
IP Code IP20
Dimming technology Dimming DALI
Wattage 20 W
Lumen 1800 lm
Colour temperature 3000 K
CRI 90-100
Rated life time Rated life time L70/B50 at 25 °C h
Safety class
Lamp type LED not exchangeable
PRODUCT DIAMETER IN CM 8.5
PRODUCT WIDTH IN CM 8.5
PRODUCT LENGTH IN CM 19
LIFE TIME IN H 40000
UGR 25

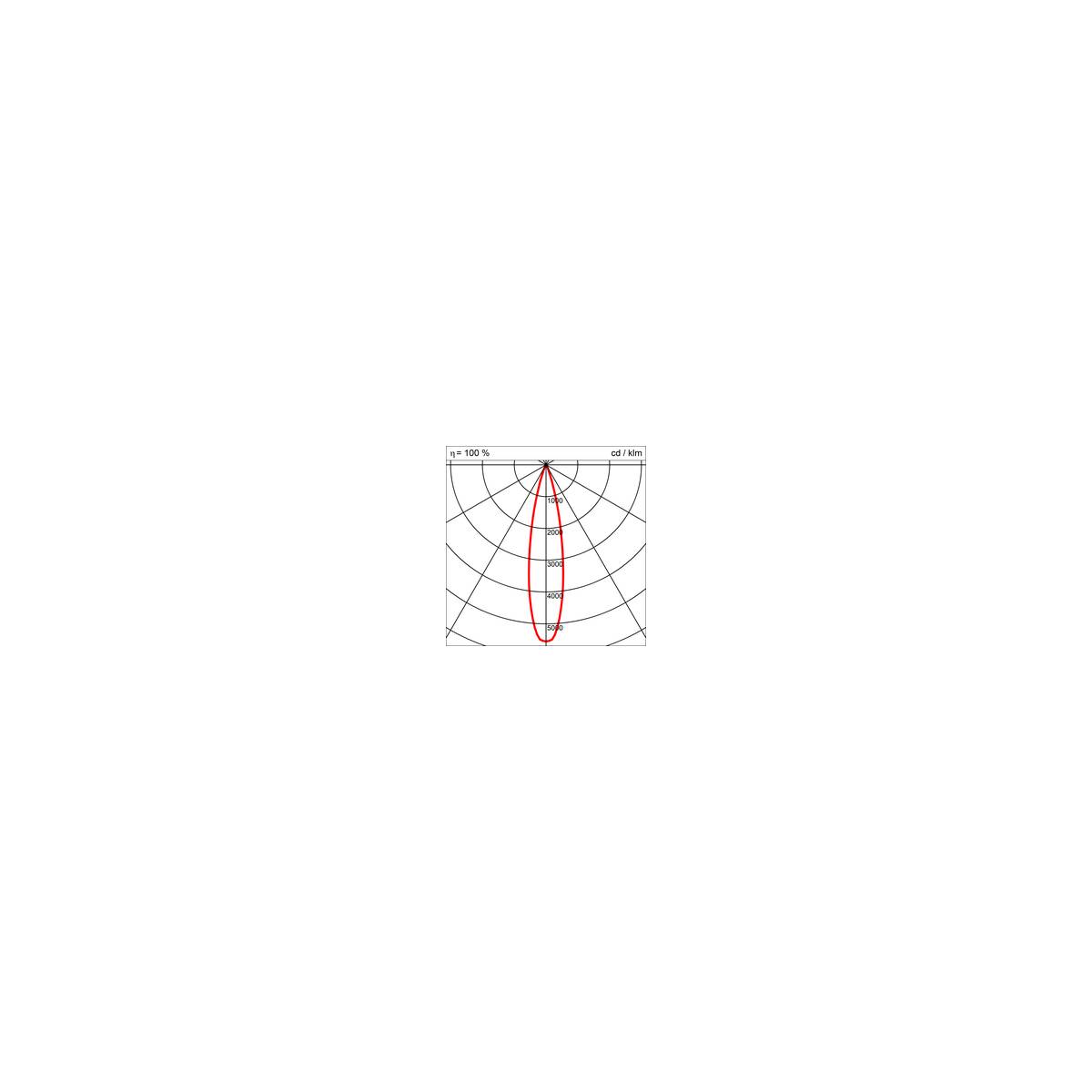

BEAM ANGLE 15
EEK contains Lightsources of EEC E
RATED SECONDARY IN MA/V 500mA
RATED PRIMARY VOLTAGE 220-240V ~50/60Hz
Luminaire efficacy 37.50 lm/W
Suitable for lamp power 20 W
Material cover Plastic matt/satinized
Colour housing Black
Surface protection Lacquered
Material housing Aluminium
Tehnilised failid Product data sheet
Kategooriad 3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid Beam angle, Ceiling light, LED power track spotlight, Phase track, Power-track spotlight, Shop lighting, Spotlight
