OUTDOOR BULKHEAD V 360, 20W 830/840 IP65 IK10 Sensor

normal
Dimensioned drawing
Product picture back view
Product picture bottom view
Product picture detailed view
Product picture front view
Product picture sloping
Product picture top view

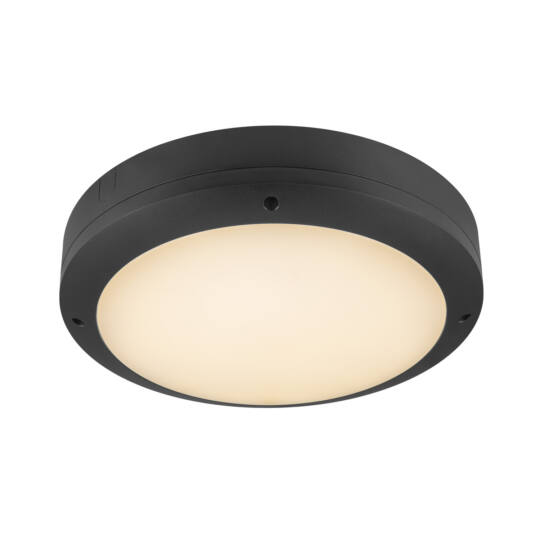

  • normal

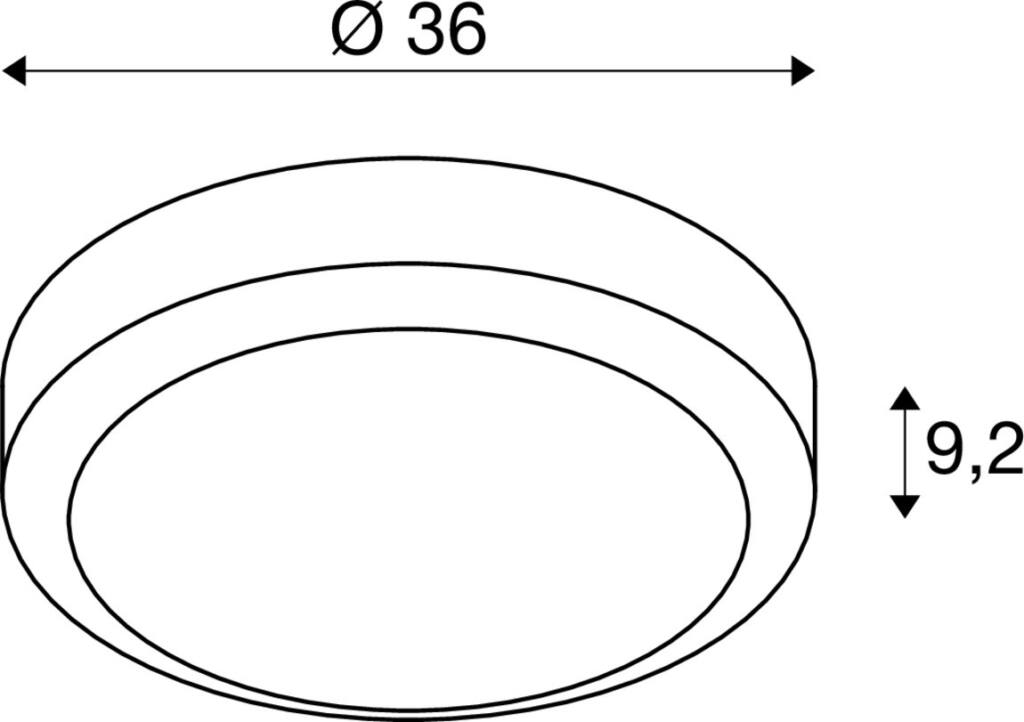

  • Dimensioned drawing
  • Product picture back view
  • Product picture bottom view
  • Product picture detailed view

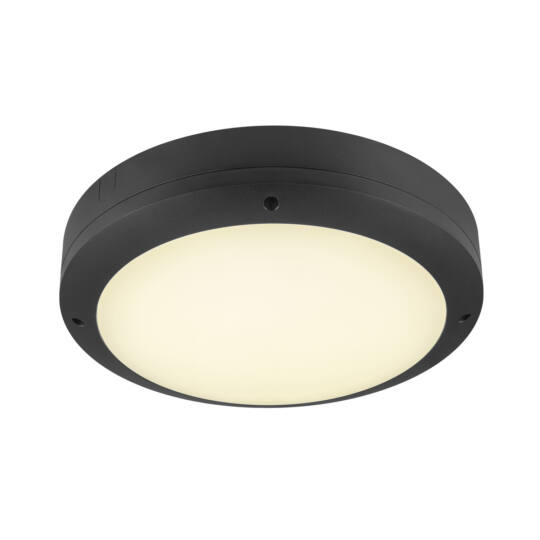

  • Product picture front view
  • Product picture sloping
  • Product picture top view

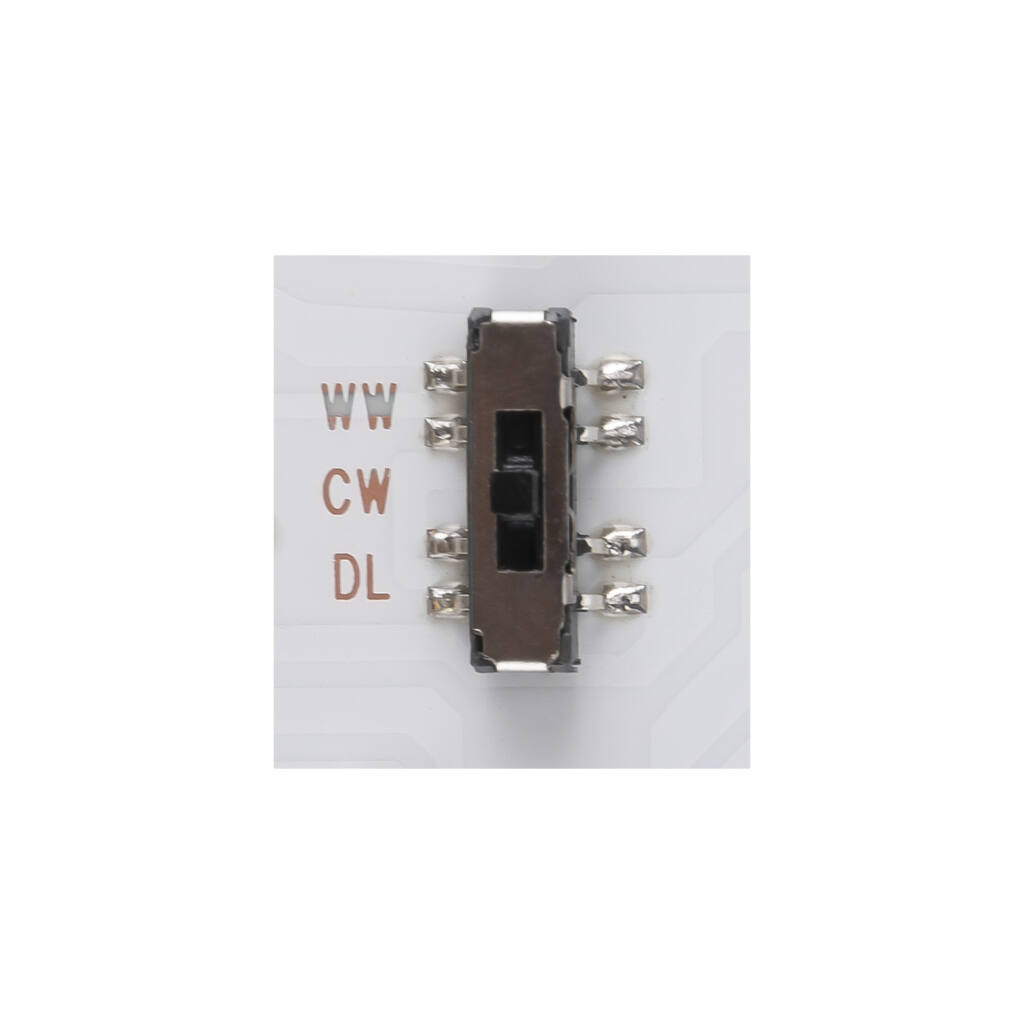

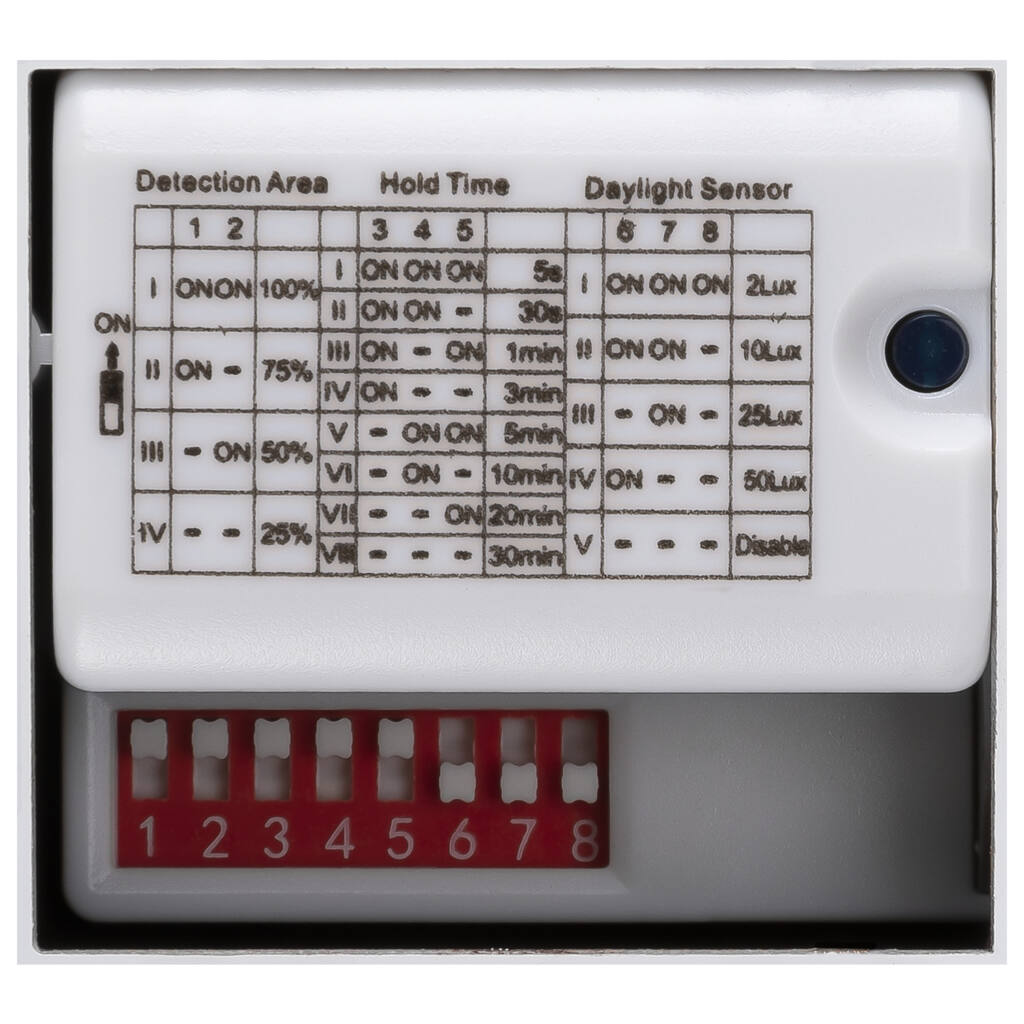

Discover our new technical product range: SLVtec.With state-of-the-art LED technology, we offer energy-efficient and functional lighting solutions for indoor and outdoor use. From wet room lights to high-bay spotlights – our high-quality products impress with functionality and a fair price-performance ratio. These include the OUTDOOR BULKHEAD V light, which is perfectly protected in all weathers thanks to its protection code IP65 and robust aluminium housing. The light colour (3000K/4000K/6500K) and light intensity (1750lm/1850lm/1900lm) can be easily changed via dip switches. And while the removable gearbox makes for easy installation, the optional motion sensor helps save energy. Decide in favour of SLVtec today.

Tehnilised andmed

Width 360 mm
IP Code IP65
Wattage 20 W
Lumen 1750
Colour temperature 3000 K
CRI 80-89
Rated life time Rated lifetime L70/B50 at 25 °C h
Installation diameter 360 mm
Safety class I
Lamp type LED not exchangeable
Hämardamine No
PRODUCT DIAMETER IN CM 36
PRODUCT WIDTH IN CM 36
PRODUCT LENGTH IN CM 36
LIFE TIME IN H 50000
BEAM ANGLE 110
EEK Energiaklass D
RATED SECONDARY IN MA/V 500mA
RATED PRIMARY VOLTAGE 200-240V ~0/50/60 Hz
Length 360 mm
Height/depth 92 mm
Luminaire efficacy 87.50
Suitable for lamp power 20 W
Impact resistance class IK10
Light outlet Direct
Material cover Plastic matt/satinized
Colour housing Black
Material housing Aluminium
Tehnilised failid Mounting instruction
Product data sheet
Declaration warranty
Kategooriad Ceiling lights, Outdoor, Surface mounted
