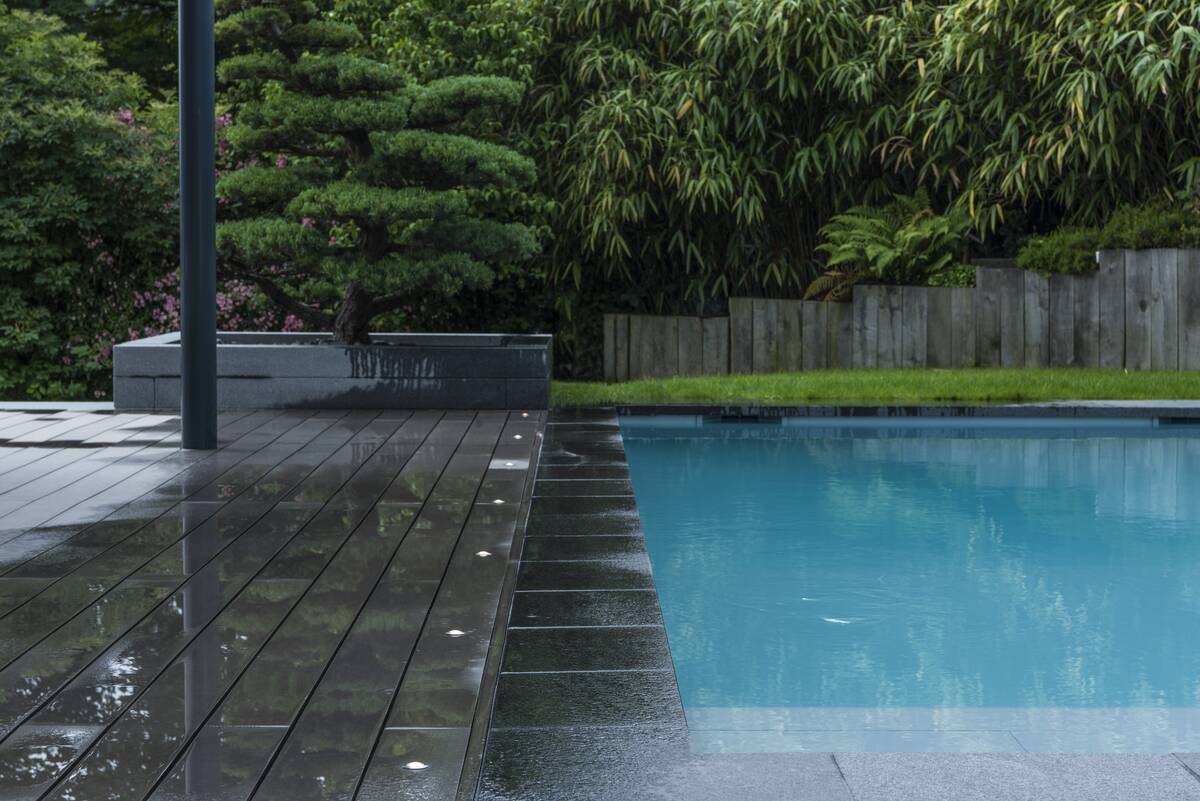

The inground fitting and recessed wall light fitted with one power LED, POWER TRAIL-LITE 42 can also be used for outdoor applications with its IP67 protection. We alternatively offer other colours of light and round or square covers. For simplified mounting, a mounting pot is included in the delivery. The electrical connection is made by the connection lead of a separately available 350mA LED driver.

Tehnilised andmed

Width	41 mm
IP Code	IP67
Wattage	1 W
Lumen	45 lm
Colour temperature	3000 K
CRI	90-100
Rated life time	Rated life time L70/B50 at 25 °C h
Built-in diameter	40 mm
Safety class	III
Lamp type	LED not exchangeable
Hämardamine	No
CUT OUT DIAMETER IN CM	4
CUT OUT DEPTH IN CM	9
CUT OUT FORM IN CM	round
PRODUCT DIAMETER IN CM	4.1
PRODUCT WIDTH IN CM	4.1
PRODUCT LENGTH IN CM	6.5
LIFE TIME IN H	30000
BEAM ANGLE	60
EEK	contains Lightsources of EEC G
RATED SECONDARY IN MA/V	350mA
RATED PRIMARY VOLTAGE	350mA
Luminaire efficacy	45.00 lm/W
Built-in height/depth	90 mm
Built-in width	40 mm
Suitable for lamp power	1 W
Impact resistance class	IK08
Colour housing	Stainless steel
Material housing	Steel
Tehnilised failid	CE-Declaration Light Distribution Curve Mounting instruction
Kategooriad	Display lights, LED, Outdoor
Sildid	Recessed floor luminaire, Stainless steel recessed floor luminaire
