Q-LINE DALI SINGLE LED, pendant, dimmable, 1500mm, black

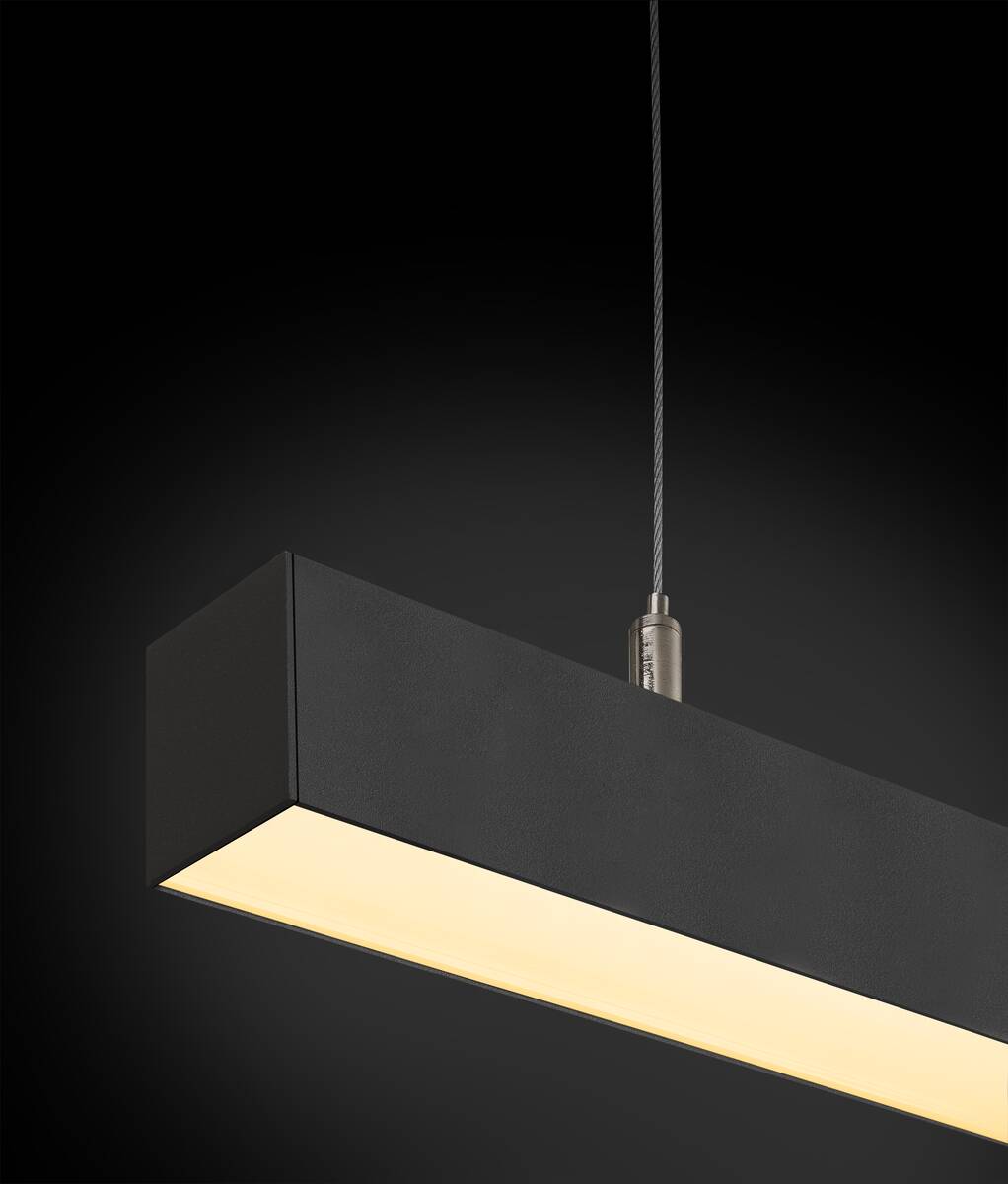

Product picture
Similar picture
Dimensioned drawing

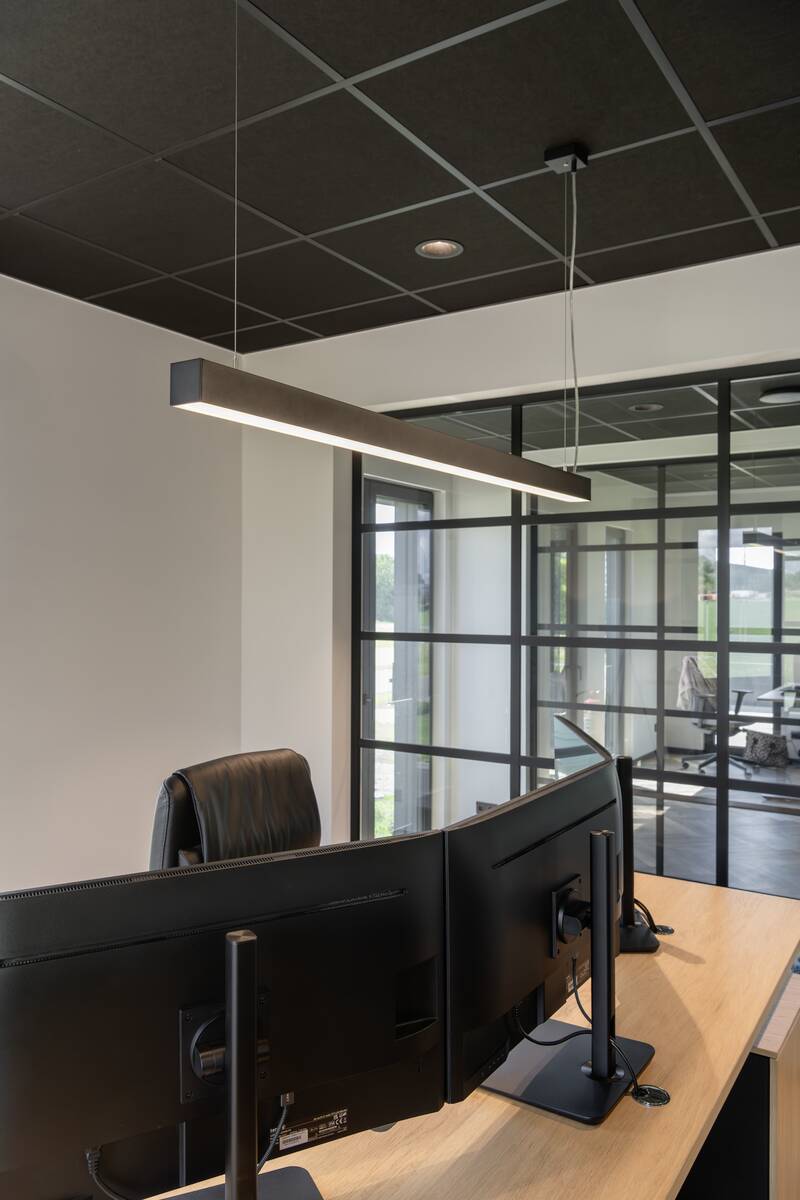

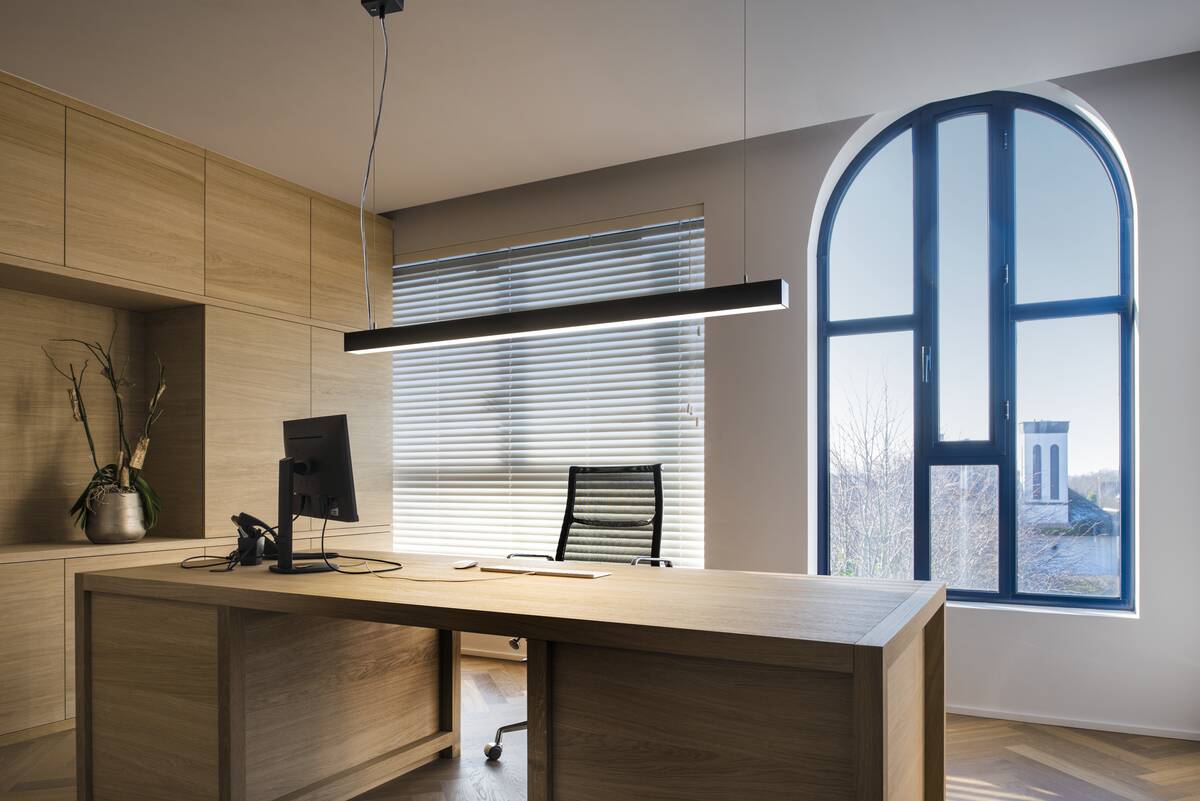

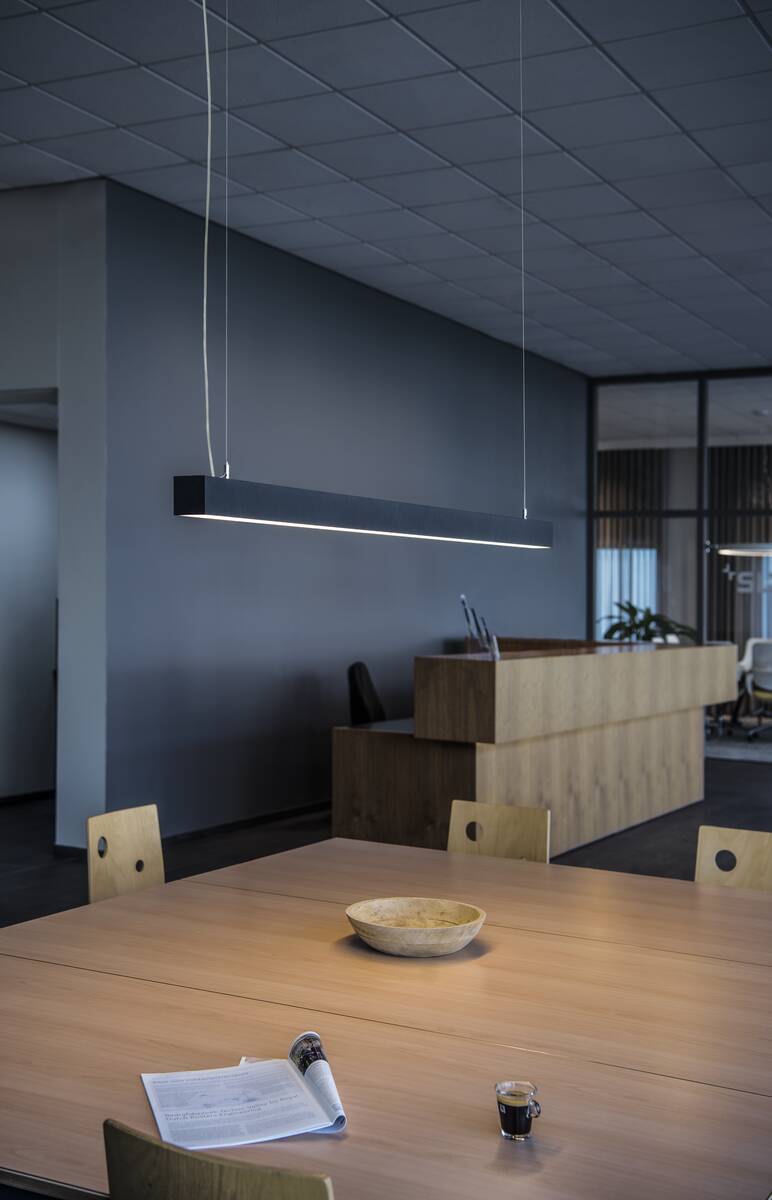

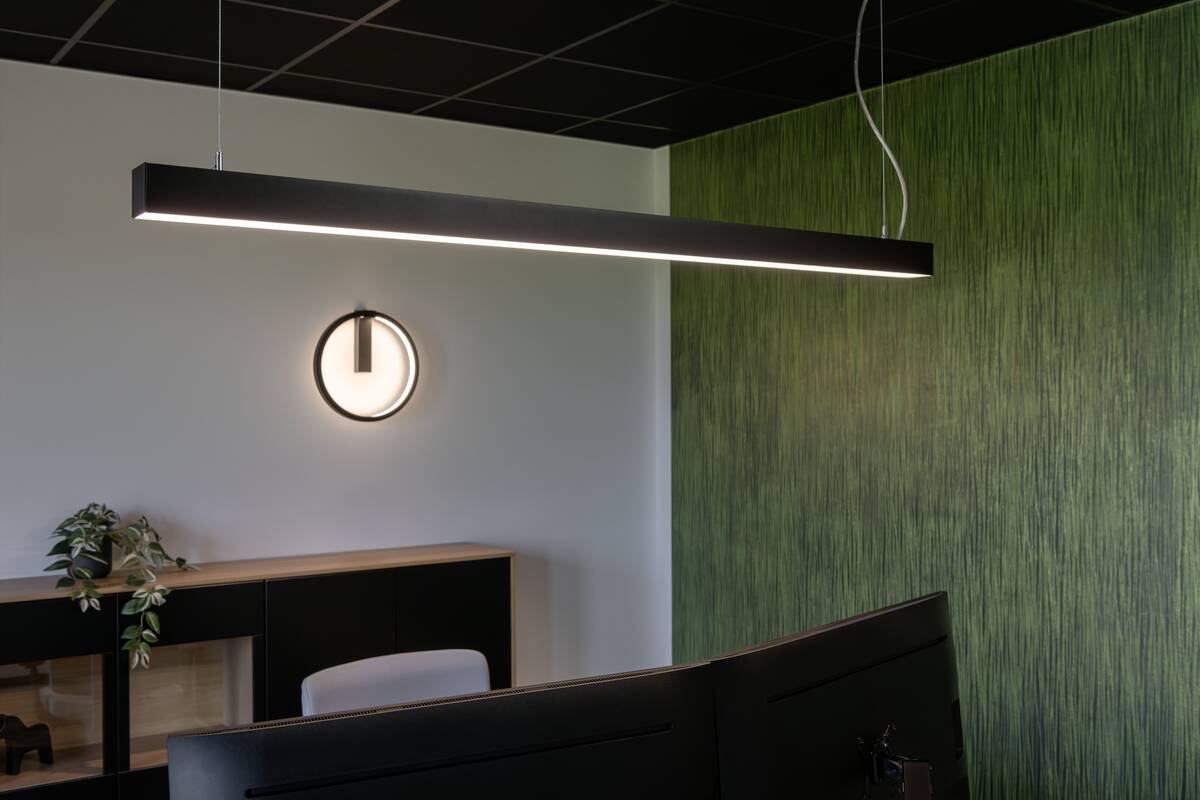

Milieu picture
Product picture back view
  • Product picture
  • Similar picture
  • Dimensioned drawing
  • Milieu picture
  • Product picture back view

The Q-LINE DALI wall light is available with a choice of a white, back, or silver-grey luminaire housing. A diffuser made of acrylic glass found underneath provides glare-free lighting properties. The integrated warm-white LEDs give an output of 3200 lm. Thanks to the DALI dimmable LED driver, the luminaire can be directly connected to the 230V mains supply.

Tehnilised andmed

Width 60 mm
IP Code IP20
Dimming technology Dimming DALI
Wattage 47 W
Lumen 3700
Colour temperature 3000 K
CRI 80-89
Rated life time Rated lifetime L70/B50 at 25 °C h
Safety class
Lamp type LED not exchangeable
CANOPY FORM IN CM square
CANOPY HEIGHT IN CM 2.7
CANOPY WIDTH IN CM 8.5
CANOPY LENGTH IN CM 8.5
PENDANT LENGTH IN CM 200
PRODUCT WIDTH IN CM
PRODUCT LENGTH IN CM 142
LIFE TIME IN H 50000
BEAM ANGLE 120
EEK Energiaklass D
RATED SECONDARY IN MA/V 350-1050mA
RATED PRIMARY VOLTAGE 220-240V~50/60 Hz
Pendant length 2000 mm
Luminaire efficacy 78.72
Suitable for lamp power 47 W
Light outlet Direct
Material cover Plastic matt/satinized
Colour housing Black
Material housing Aluminium
Tehnilised failid CE-Declaration
Mounting instruction
Kategooriad Indoor, LED, Pendant lights
Sildid Living room pendant
