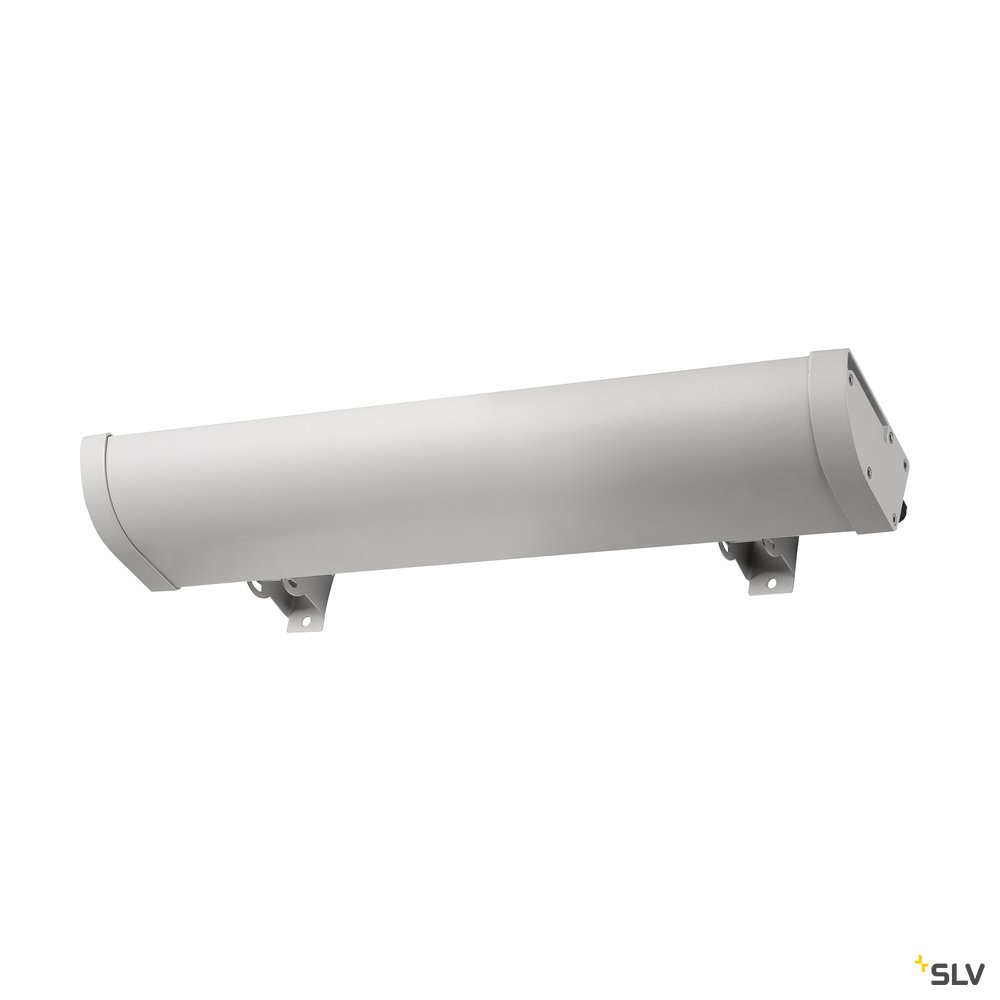

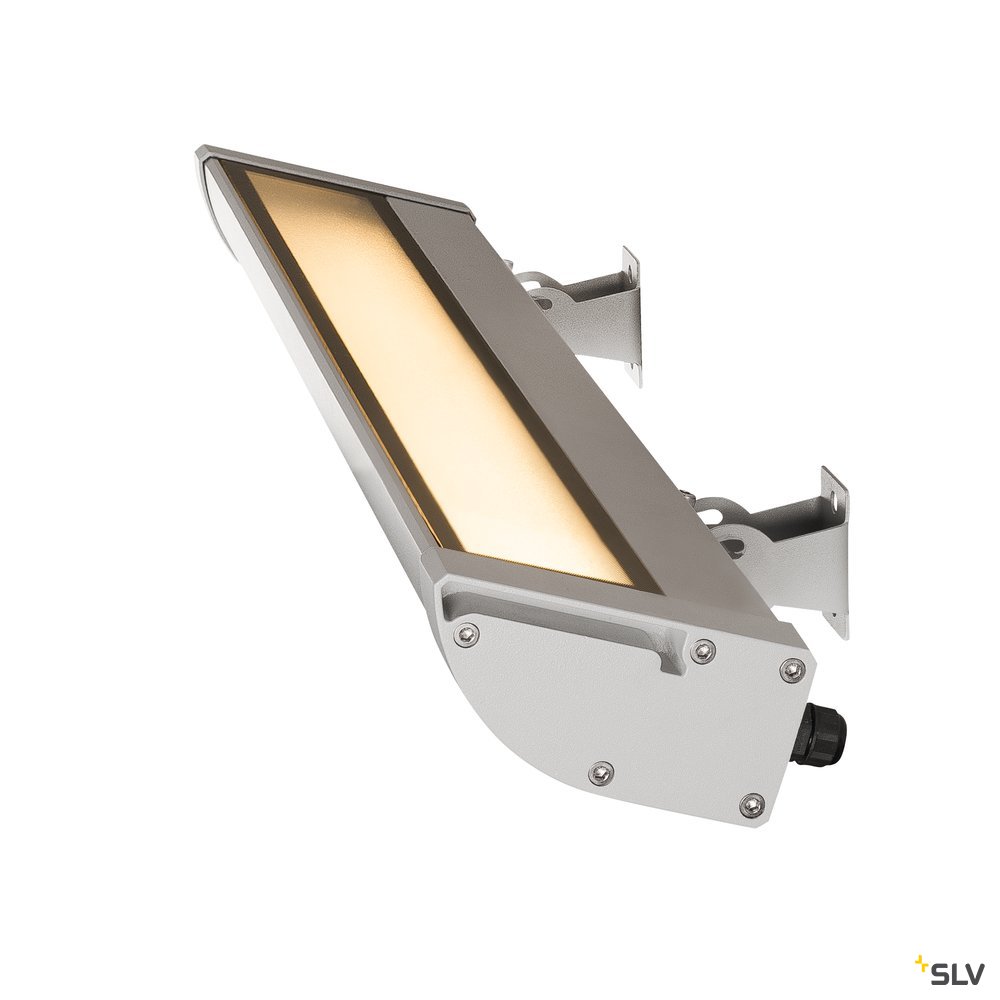

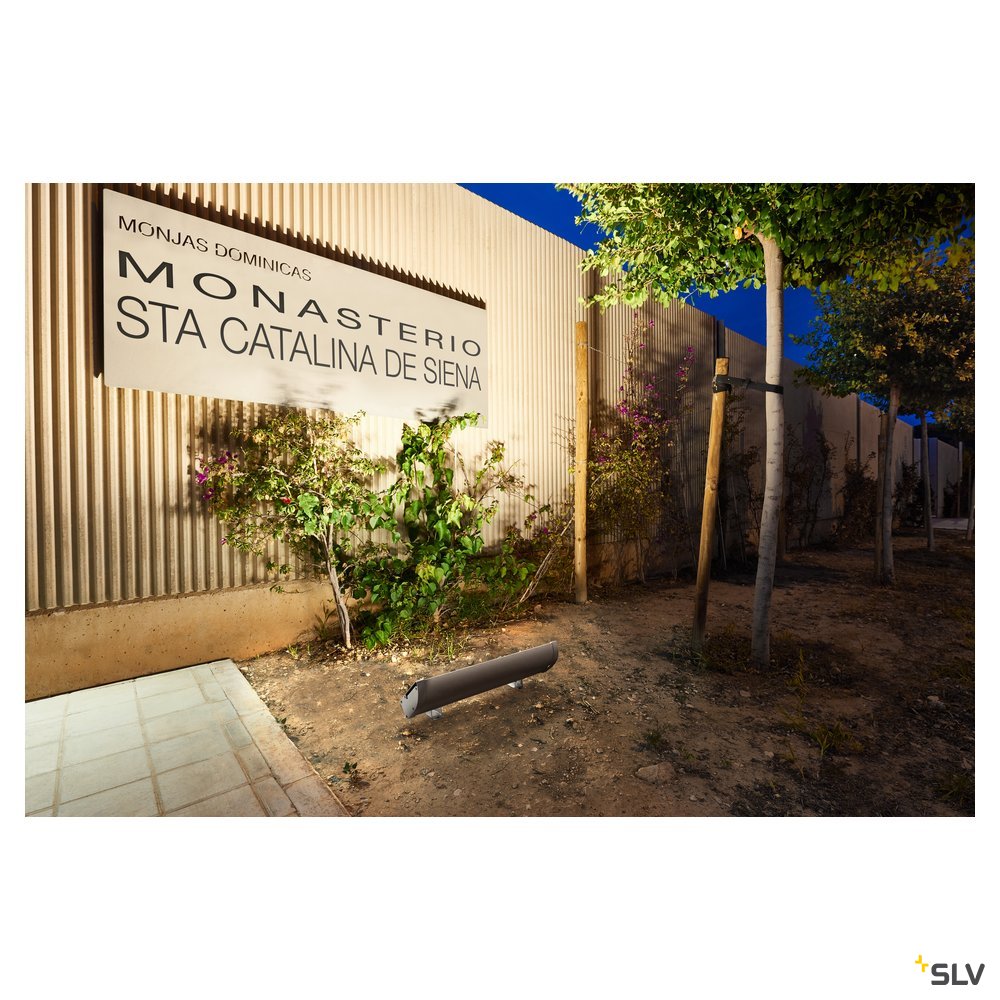

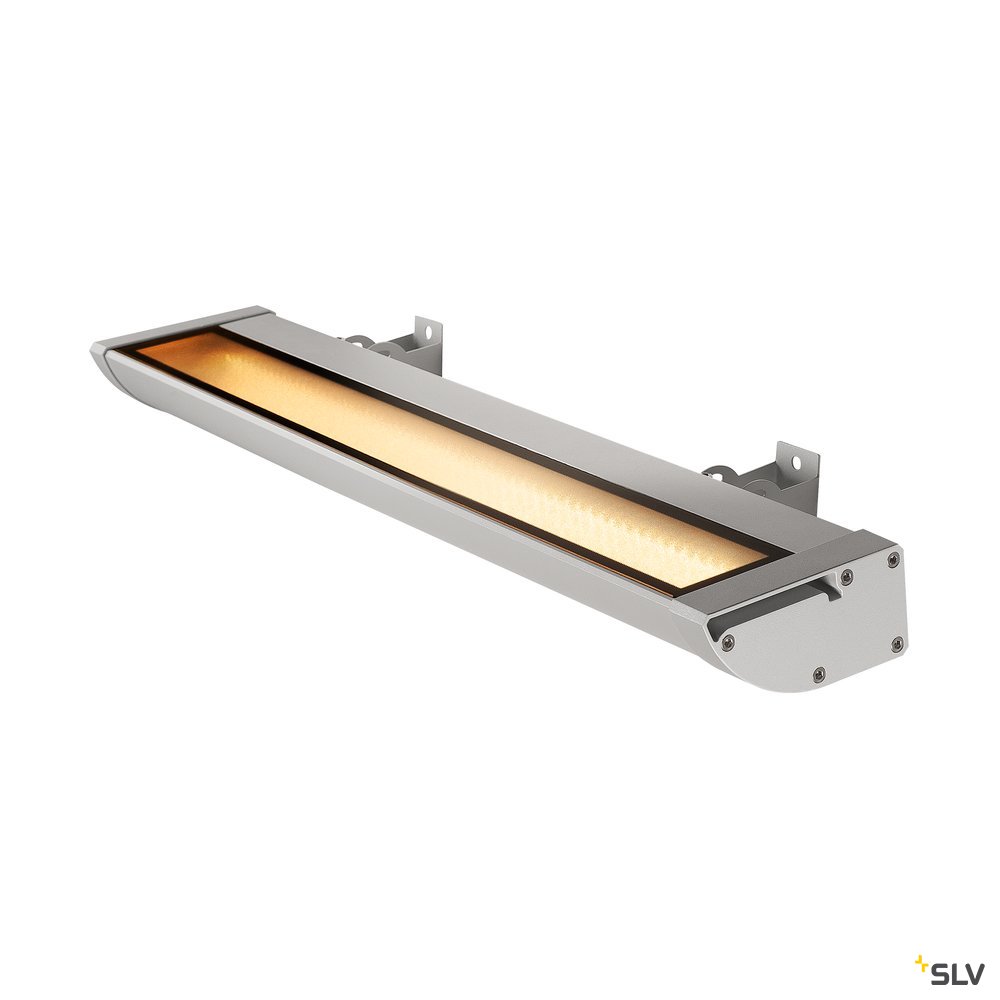

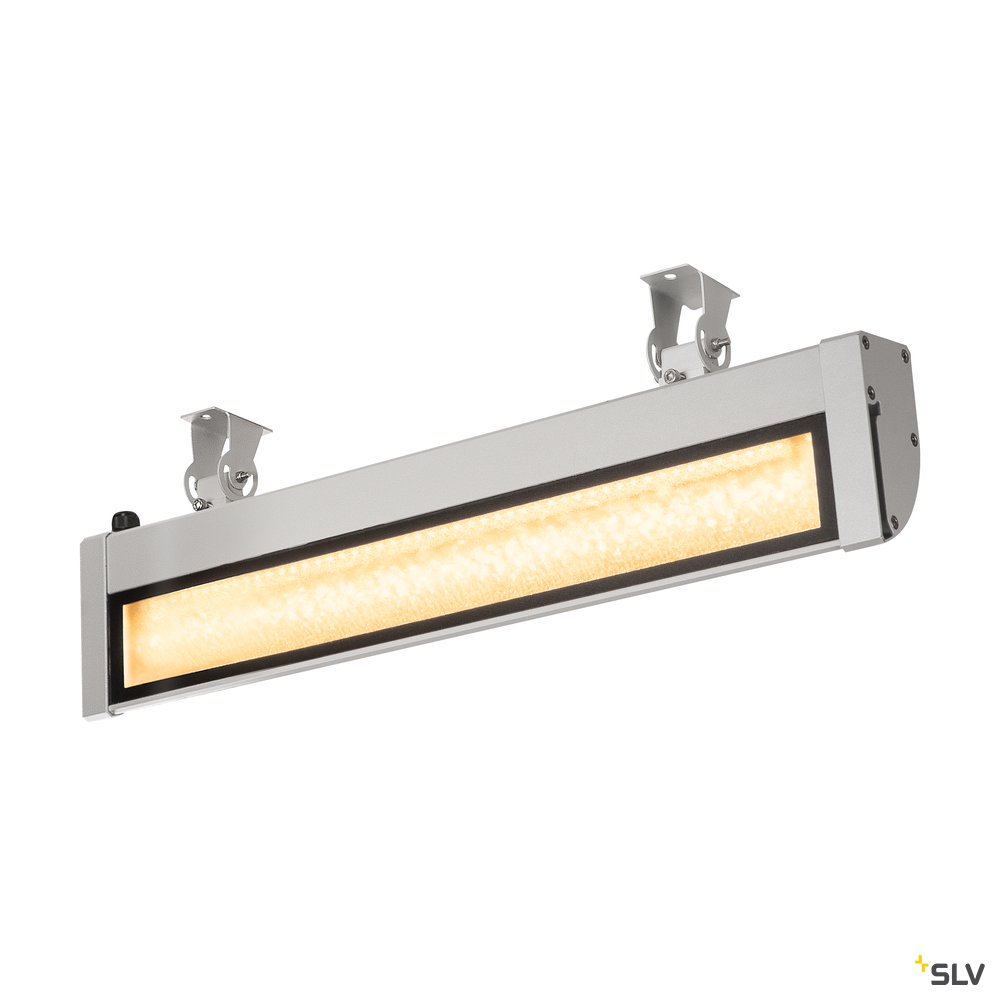

Single-headed luminaire of the VANO series made from aluminium for area or display and advertising board illumination. The dimmable VANO WING LED is suitable for wall, ground and ceiling mounting. Thanks to the integrated asymmetrical reflector, an even and wide-area lighting is possible even at small separation distances to the illuminated surface. Thanks to the built-in LED driver, the luminaire can be connected directly to the 230V mains supply. With protection class IP65 it is suitable for outdoor use. The assembly holders make assembly easier.

Tehnilised andmed

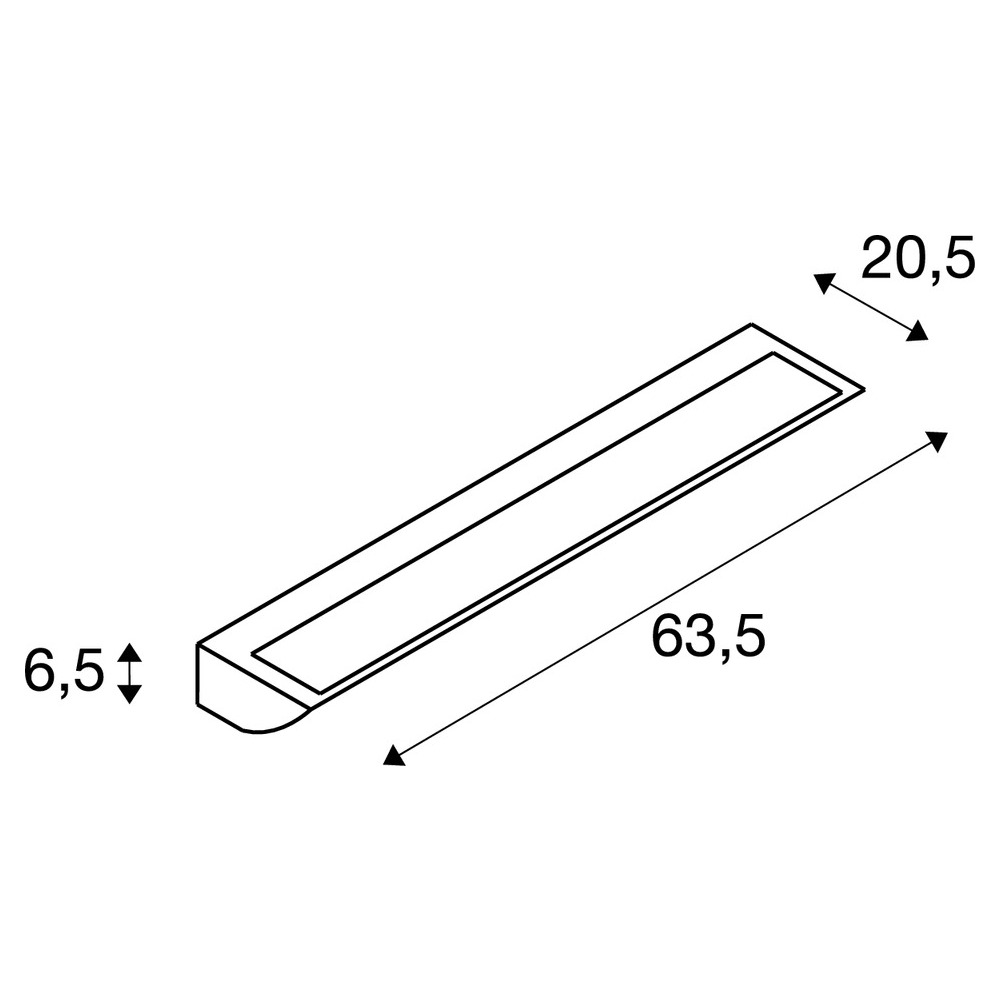

Width	635 mm
IP Code	IP65
Type of grid	None
Wattage	25 W
Lumen	1500 lm
Colour temperature	3000 K
CRI	80-89
Safety class	I
Lamp type	LED not exchangeable
Beam angle	Open beam/diffuse
Dimming 1-10 V	Yes
Hämardamine	No
Length	205 mm
Colour housing	Grey
Material housing	Aluminium
Impact resistance class	IK02
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Suitable for lamp power	W
Luminaire efficacy	60 lm/W
Height/depth	65 mm
Light outlet	Direct
Material cover	Glass transparent

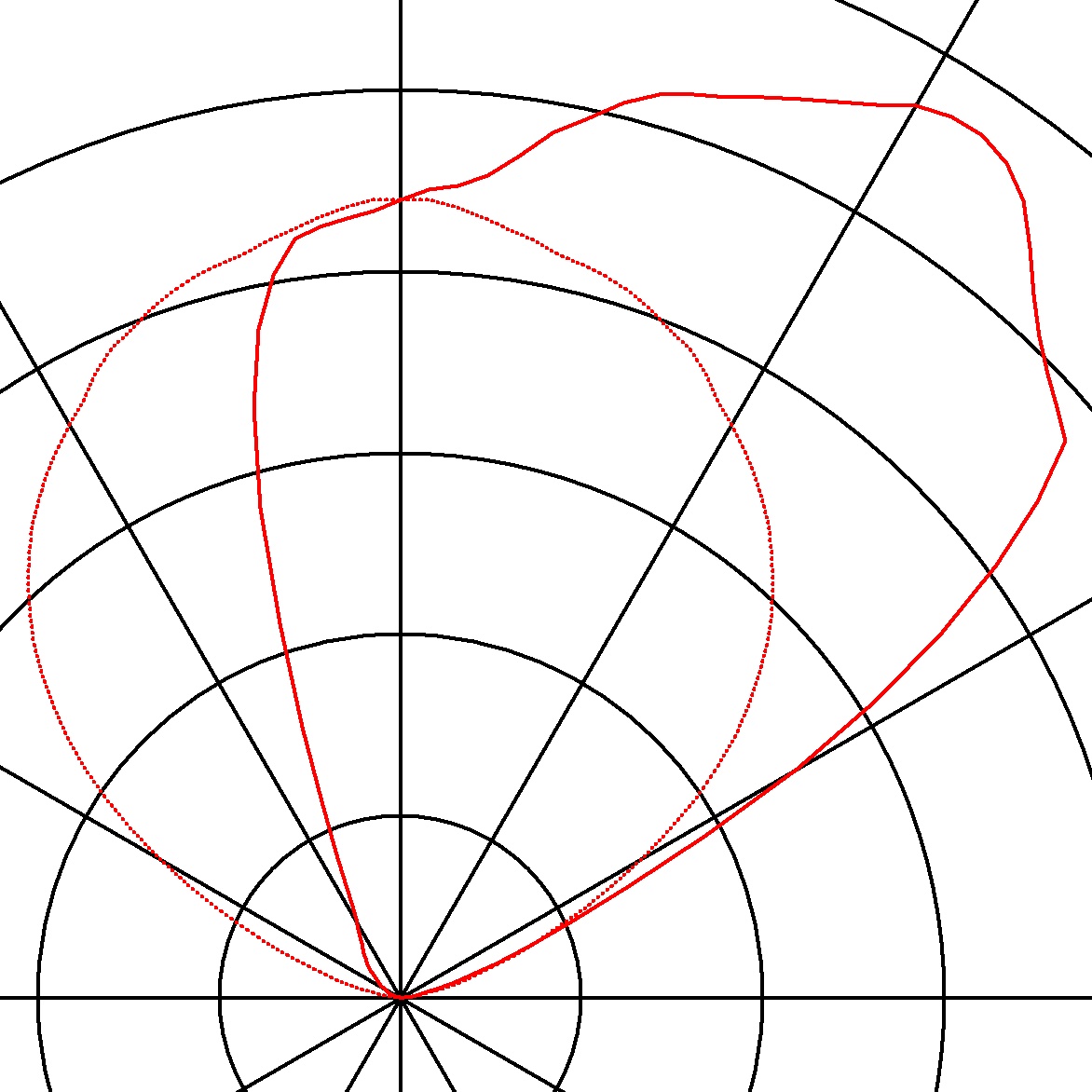

Tehnilised failid	Light Distribution Curve Mounting instruction
Kategooriad
Sildid	Ceiling light, Fassadenbeleuchtung, Floor luminaire, LED wall light, LED-Floodlights, Wall floodlights, Wall light
