WATERPROOF V, 600 9/18W 830/840 IP66

normal

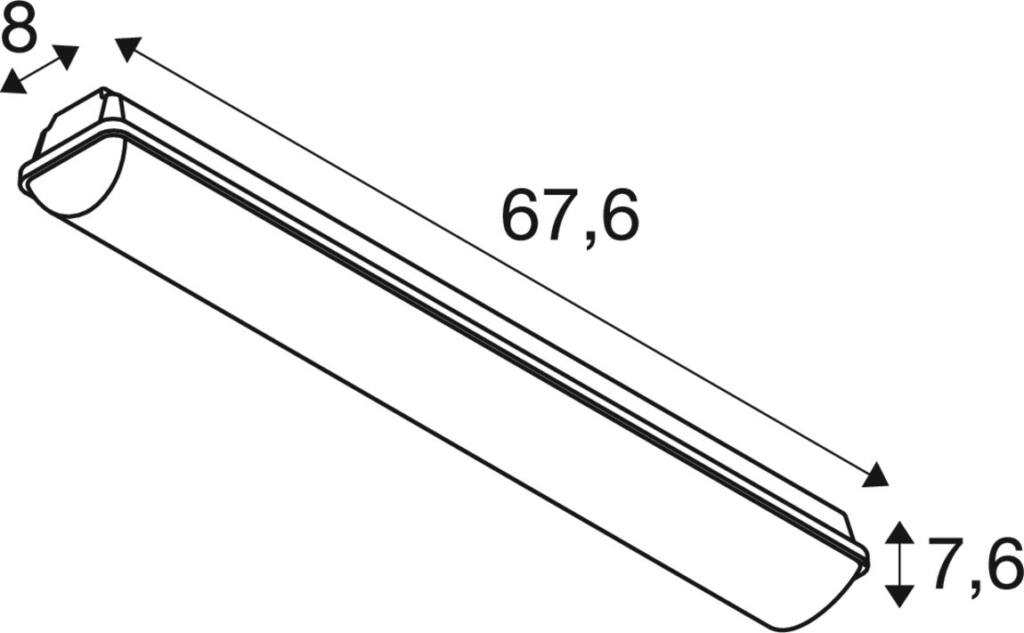

Dimensioned drawing
Product picture back view
Product picture bottom view

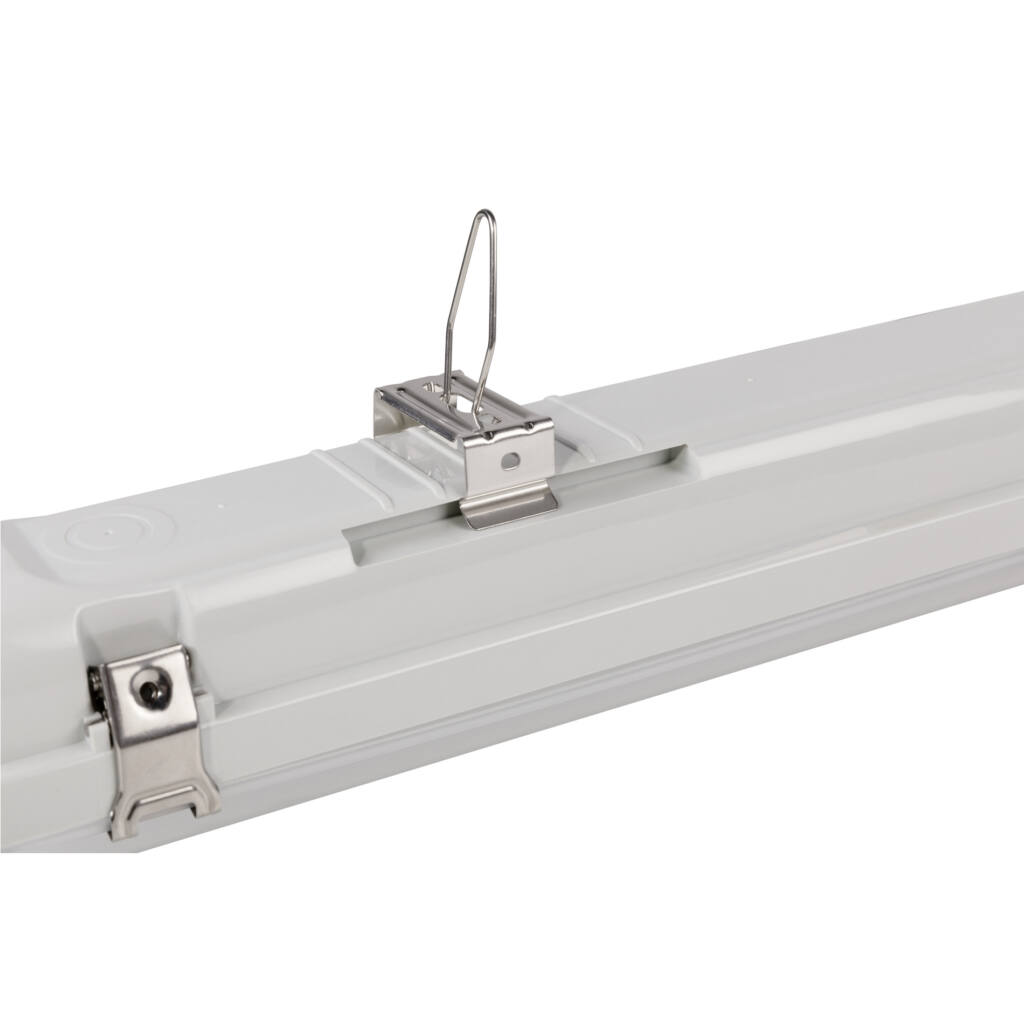

Product picture detailed view

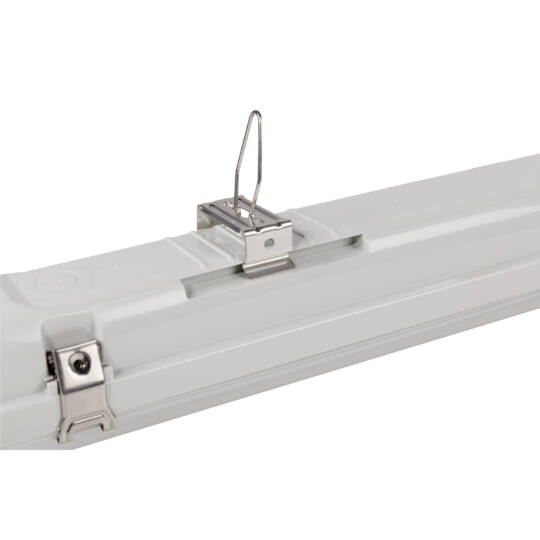

Product picture front view

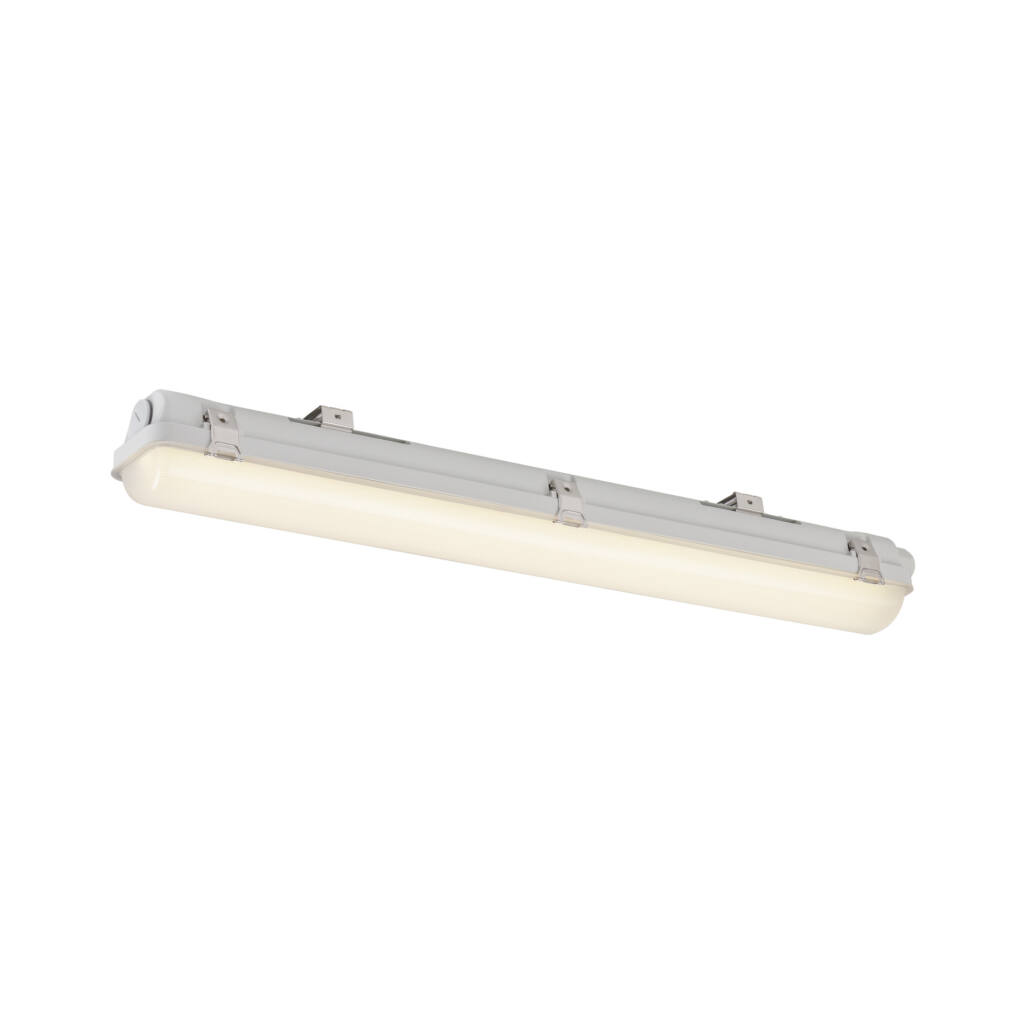

Product picture sloping
Product picture top view
Product picture view from the left side
  • normal
  • Dimensioned drawing
  • Product picture back view
  • Product picture bottom view
  • Product picture detailed view
  • Product picture front view
  • Product picture sloping
  • Product picture top view
  • Product picture view from the left side

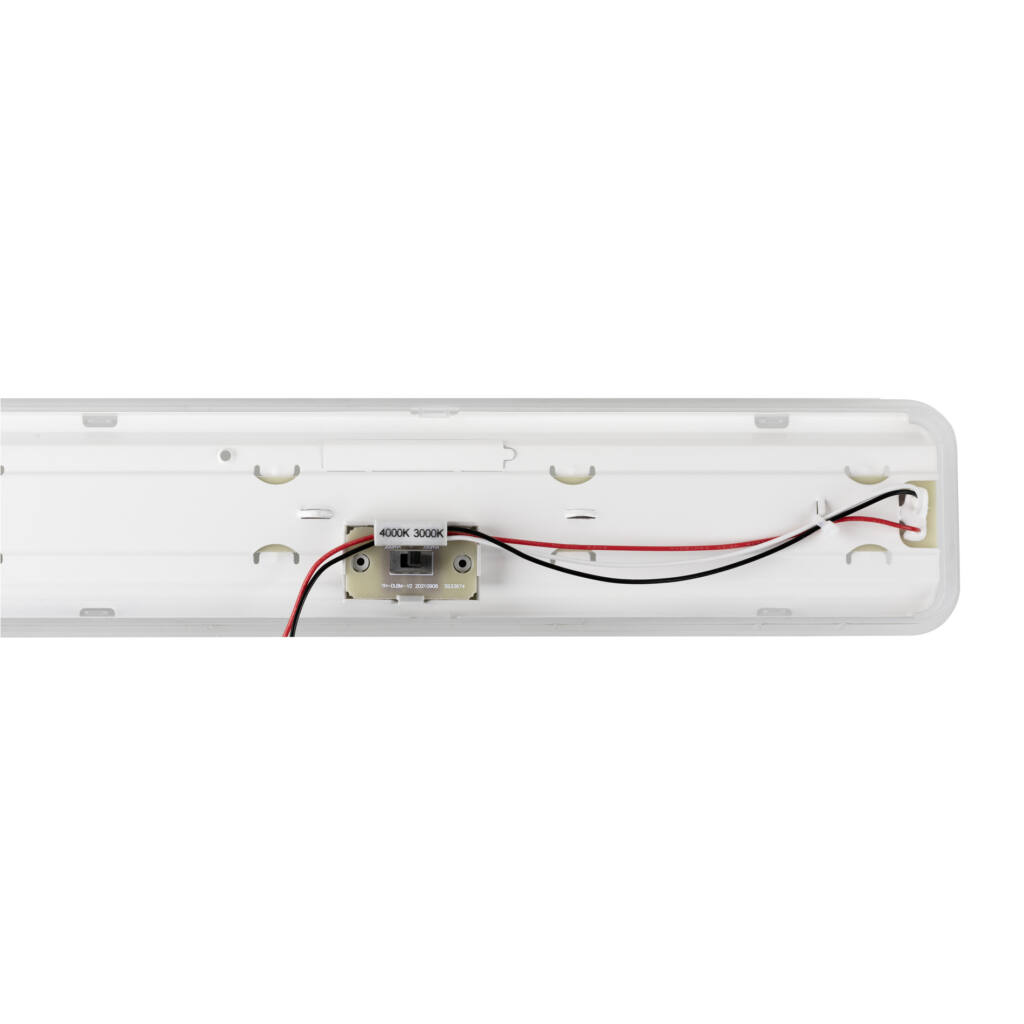

Discover our technical product range: SLVtec. With state-of-the-art LED technology, we offer energy-efficient and functional lighting solutions for indoor and outdoor use. From wet room lights to high-bay spotlights – our high-quality products impress with functionality and a fair price-performance ratio. These include the WATERPROOF V light, which is protected against strong jets of water thanks to protection code IP66. The luminaire is available in three lengths and also as a DALI version. The light colour (3000K/4000K) and light intensity can be easily changed via dip switches. The pre-installed through-wiring kit allows two lights to be connected quickly and easily. Installation is also extremely easy thanks to the removable equipment rack. Opt for SLVtec today.

Tehnilised andmed

Width 80 mm
IP Code IP66
Wattage 17 W
Lumen 2010
Colour temperature 3000 K
CRI 80-89
Safety class
Lamp type LED not exchangeable
Hämardamine No
PRODUCT WIDTH IN CM
PRODUCT LENGTH IN CM 67.6
LIFE TIME IN H 50000
EEK Energiaklass D
RATED SECONDARY IN MA/V 350/300/250mA
RATED PRIMARY VOLTAGE 220-240V ~50/60 Hz
Length 676 mm
Height/depth 76 mm
Luminaire efficacy 118.00
Suitable for lamp power 17 W
Impact resistance class IK08
Light outlet Direct
Material cover Other
Colour housing Grey
Material housing Plastic
Tehnilised failid Mounting instruction
Product data sheet
Declaration warranty
Kategooriad Ceiling lights, Outdoor
